A	B	C	D	E	F	G	H	I
1		Attachment B - Emission Calculations
2		Table B-1: Emissions from the RTO
4		Toxics Emission Unit ID:	TO-01
5		Emission Point:	RTO1
6		Description:	Regenerative Thermal Oxidizer (RTO) controlling Refinery, Oil Polishing System (OPS) and Sulfonation
8		Max. Operating Parameters:						References
9								Ref. 1: January 30-31, 2020 Source Test
10		Hours per Day	24	hrs/day				Ref. 1b: January 26-27, 2022 Source Test (Naphthalene result multiplied by a factor of 10 due to instrument saturation reported by lab)
11		Hours per Year	8760	hrs/year				Ref. 2: Emissions Estimation Protocol for Petroleum Refineries, Version 3, Appendix D—Emission Factors for Combustion Sources, Table D-9a. Summary of Data for Emission Factor Development – Heaters Firing Fuel Oil
12								Ref. 2a: SCAQMD Reporting Procedures for AB2588 Facilities Reporting their Quadrennial Air Toxic Emission Inventory in the Annual Emission Reporting Program, Appendix B-1, Table B-2.
13		HTR-3 Daily Distillate Consumption	2,100	gal/day				Ref. 3: Emissions Estimation Protocol for Petroleum Refineries, Version 3, Appendix D—Emission Factors for Combustion Sources, Table D-11a. Summary of Data for Emission Factor Development – Heaters Firing Refinery Fuel Gas
14		HTR-3 Daily Distillate Consumption	766,500	gal/yr				Ref. 4: SCAQMD Reporting Procedures for AB2588 Facilities Reporting their Quadrennial Air Toxic Emission Inventory in the Annual Emission Reporting Program, Appendix B-1, Table B-1.
16		Refinery Vac System Flow Rate	57	ACFM
17		Refinery Vac System Air Temp	140	F
19		OPS Flow Rate	1,398	lb/hr
20		OPS Temp	140	F
21		Air Density @ Temp	0.06619	lb/ft3
22		OPS Air Flow Rate	352	ACFM
24		Sulfonation Flow Rate	750	ACFM
25		Sulfonation Temp	140	F
27		Total System "Refinery Gas" Air Flow Rate	1,159	ACFM
29		Thermal Oxidizer Burner Rating	1.0	MMBtu/hr
30		Natural Gas HHV	1,020	Btu/ft3
32		RTO Stack Volumetric Flow Rate	3,071	dscfm	(Jan. 20 ST - metals run)
34		Calculation Table
36	Emission Factor Set	TAC	CAS #	Emission Factor	Units	Emissions (lb/year)	Emissions (lb/day)	EF Reference	Notes
37	Set 1	Antimony and compounds	7440-36-0	3.80E-05	lb/hr	3.33E-01	9.12E-04	Ref. 1	One ND
38		Arsenic and compounds	7440-38-2	3.00E-04	lb/hr	2.63E+00	7.20E-03	Ref. 1
39		Barium and compounds	7440-39-3	1.30E-04	lb/hr	1.14E+00	3.12E-03	Ref. 1
40		Beryllium and compounds	7440-41-7	1.50E-06	lb/hr	1.31E-02	3.60E-05	Ref. 1	Three ND
41		Cadmium and compounds	7440-43-9	3.00E-06	lb/hr	2.63E-02	7.20E-05	Ref. 1	Three ND
42		Chromium VI, chromate, and dichromate particulate	18540-29-9	1.60E-04	lb/hr	1.40E+00	3.84E-03	Ref. 1
43		Cobalt and compounds	7440-48-4	6.20E-06	lb/hr	5.43E-02	1.49E-04	Ref. 1
44		Copper and compounds	7440-50-8	8.30E-05	lb/hr	7.27E-01	1.99E-03	Ref. 1
45		Lead and compounds	7439-92-1	2.10E-04	lb/hr	1.84E+00	5.04E-03	Ref. 1
46		Manganese and compounds	7439-96-5	3.00E-04	lb/hr	2.63E+00	7.20E-03	Ref. 1
47		Mercury and compounds	7439-97-6	1.70E-05	lb/hr	1.49E-01	4.08E-04	Ref. 1
48		Nickel compounds, insoluble	C365	1.10E-04	lb/hr	9.64E-01	2.64E-03	Ref. 1
49		Phosphorus and compounds	7723-14-0	7.10E-01	lb/hr	6.22E+02	1.70E+00	Ref. 1
50		Selenium and compounds	7782-49-2	1.40E-04	lb/hr	1.23E+00	3.36E-03	Ref. 1	One ND
51		Silver and compounds	7440-22-4	3.20E-05	lb/hr	2.80E-01	7.68E-04	Ref. 1
52		Thallium and compounds	7440-28-0	7.50E-05	lb/hr	6.57E-01	1.80E-03	Ref. 1	Three ND
53		Zinc and compounds	7440-66-6	1.40E-03	lb/hr	1.23E+00	3.36E-02	Ref. 1
54	Set 1b	1,2,3,4,6,7,8-Heptachlorodibenzo-p-dioxin (HpCDD)	35822-46-9	1.54E-09	lb/hr	1.35E-05	3.70E-08	Ref. 1b
55		Octachlorodibenzo-p-dioxin (OCDD)	3268-87-9	3.66E-09	lb/hr	3.21E-05	8.78E-08	Ref. 1b
56		2,3,7,8-Tetrachlorodibenzofuran (TcDF)	51207-31-9	7.27E-10	lb/hr	6.37E-06	1.75E-08	Ref. 1b
57		Acenaphthene	83-32-9	2.15E-05	lb/hr	1.88E-01	5.16E-04	Ref. 1b
58		Acenaphthylene	208-96-8	5.31E-05	lb/hr	4.65E-01	1.27E-03	Ref. 1b
59		Anthracene	120-12-7	2.92E-05	lb/hr	2.56E-01	7.01E-04	Ref. 1b
60		Benz[a]anthracene	56-55-3	1.52E-05	lb/hr	1.33E-01	3.65E-04	Ref. 1b

61	Benzo[a]pyrene	50-32-8	2.46E-07	lb/hr	2.16E-03	5.91E-06	Ref. 1b
62	Benzo[b]fluoranthene	205-99-2	7.55E-06	lb/hr	6.61E-02	1.81E-04	Ref. 1b
63	Benzo[e]pyrene	192-97-2	1.85E-06	lb/hr	1.62E-02	4.44E-05	Ref. 1b
64	Benzo[g,h,i]perylene	191-24-2	1.02E-06	lb/hr	8.94E-03	2.45E-05	Ref. 1b
65	Benzo[k]fluoranthene	207-08-9	1.47E-06	lb/hr	1.29E-02	3.53E-05	Ref. 1b
66	Chrysene	218-01-9	2.26E-05	lb/hr	1.98E-01	5.42E-04	Ref. 1b
67	Fluoranthene	206-44-0	6.64E-05	lb/hr	5.82E-01	1.59E-03	Ref. 1b
68	Fluorene	86-73-7	8.99E-05	lb/hr	7.88E-01	2.16E-03	Ref. 1b
69	2-Methyl naphthalene	91-57-6	2.14E-03	lb/hr	1.87E+00	5.14E-02	Ref. 1b
70	Naphthalene	91-20-3	2.80E-02	lb/hr	2.45E+01	6.72E-01	Ref. 1b
71	Phenanthrene	85-01-8	2.60E-04	lb/hr	2.28E+00	6.24E-03	Ref. 1b
72	Pyrene	129-00-0	4.43E-05	lb/hr	3.88E-01	1.06E-03	Ref. 1b
73	PCB-8 [2,4'-dichlorobiphenyl]	34883-43-7	1.20E-07	lb/hr	1.05E-03	2.88E-06	Ref. 1b
74	PCB 18 [2,2',5-trichlorobiphenyl]	37680-65-2	7.94E-08	lb/hr	6.96E-04	1.91E-06	Ref. 1b
75	PCB-28 [2,4,4'-trichlorobiphenyl]	7012-37-5	6.71E-08	lb/hr	5.88E-04	1.61E-06	Ref. 1b
76	PCB-44 [2,2',3,5'-tetrachlorobiphenyl]	41464-39-5	2.69E-08	lb/hr	2.36E-04	6.46E-07	Ref. 1b
77	PCB-52 [2,2',5,5'-tetrachlorobiphenyl]	35693-99-3	2.82E-08	lb/hr	2.47E-04	6.77E-07	Ref. 1b
78	PCB-66 [2,3',4,4'-tetrachlorobiphenyl]	32598-10-0	1.35E-08	lb/hr	1.18E-04	3.24E-07	Ref. 1b
79	PCB 77 [3,3',4,4'-tetrachlorobiphenyl]	32598-13-3	1.65E-09	lb/hr	1.45E-05	3.96E-08	Ref. 1b
80	PCB 81 [3,4,4',5-tetrachlorobiphenyl]	70362-50-4	1.42E-10	lb/hr	1.24E-06	3.40E-09	Ref. 1b
81	PCB-101 [2,2',4,5,5'-pentachlorobiphenyl]	37680-73-2	1.37E-08	lb/hr	1.20E-04	3.29E-07	Ref. 1b
82	PCB 105 [2,3,3',4,4'-pentachlorobiphenyl]	32598-14-4	3.26E-09	lb/hr	2.86E-05	7.82E-08	Ref. 1b
83	PCB 118 [2,3',4,4',5-pentachlorobiphenyl]	31508-00-6	8.28E-09	lb/hr	7.25E-05	1.99E-07	Ref. 1b
84	PCB 123 [2,3',4,4',5'-pentachlorobiphenyl]	65510-44-3	2.12E-10	lb/hr	1.85E-06	5.08E-09	Ref. 1b
85	PCB-128 [2,2',3,3',4,4'-hexachlorobiphenyl]	38380-07-3	6.83E-10	lb/hr	5.98E-06	1.64E-08	Ref. 1b
86	PCB-138 [2,2',3,4,4',5'-hexachlorobiphenyl]	35065-28-2	5.53E-09	lb/hr	4.84E-05	1.33E-07	Ref. 1b
87	PCB-153 [2,2',4,4',5,5'-hexachlorobiphenyl]	35065-27-1	4.98E-09	lb/hr	4.36E-05	1.20E-07	Ref. 1b
88	PCB 156 [2,3,3',4,4',5-hexachlorobiphenyl]	38380-08-4	4.57E-10	lb/hr	4.01E-06	1.10E-08	Ref. 1b
89	PCB 167 [2,3',4,4',5,5'-hexachlorobiphenyl]	52663-72-6	1.54E-10	lb/hr	1.35E-06	3.69E-09	Ref. 1b
90	PCB 169 [3,3',4,4',5,5'-hexachlorobiphenyl]	32774-16-6	3.56E-10	lb/hr	3.12E-06	8.54E-09	Ref. 1b
91	PCB-170 [2,2',3,3',4,4',5-heptachlorobiphenyl]	35065-30-6	5.54E-10	lb/hr	4.85E-06	1.33E-08	Ref. 1b
92	PCB-180 [2,2',3,4,4',5,5'-heptachlorobiphenyl]	35065-29-3	2.09E-09	lb/hr	1.83E-05	5.02E-08	Ref. 1b
93	PCB-187 [2,2',3,4',5,5',6-heptachlorobiphenyl]	52663-68-0	8.76E-10	lb/hr	7.68E-06	2.10E-08	Ref. 1b
94	Polychlorinated biphenyls (PCBs)	1336-36-3	1.23E-06	lb/hr	1.08E-02	2.95E-05	Ref. 1b
95	Set 2	Acetaldehyde	75-07-0	5.43E-03	lb/Mgal	4.16E+00	1.14E-02	Ref. 2
96		Acrolein	107-02-8	5.98E-03	lb/Mgal	4.58E+00	1.26E-02	Ref. 2
97		Benzene	71-43-2	8.47E-02	lb/Mgal	6.49E+00	1.78E-01	Ref. 2
98		1,3-Butadiene	106-99-0	1.95E-01	lb/Mgal	1.49E+01	4.10E-01	Ref. 2
99		Chloroform	67-66-3	8.63E-02	lb/Mgal	6.61E+00	1.81E-01	Ref. 2
100		2-Chloronaphthalene	91-58-7	1.17E-04	lb/Mgal	8.97E-02	2.46E-04	Ref. 2
101		Formaldehyde	50-00-0	3.80E-02	lb/Mgal	2.91E+00	7.98E-02	Ref. 2
102		Propylene	115-07-1	1.52E-01	lb/Mgal	1.17E+01	3.19E-01	Ref. 2
103		Toluene	108-88-3	9.99E-02	lb/Mgal	7.66E+00	2.10E-01	Ref. 2
104		Xylene (mixture), including m-xylene, o-xylene, p-xylene	1330-20-7	1.92E-01	lb/Mgal	1.47E+01	4.03E-01	Ref. 2
105		Hydrochloric acid	7647-01-0	1.86E+00	lb/Mgal	1.43E+02	3.91E+00	Ref. 2a
106	Set 3	Acetaldehyde	75-07-0	1.95E-01	lb/MMCF	1.19E+01	3.25E-01	Ref. 3
107		Benzene	71-43-2	8.42E-01	lb/MMCF	5.13E+01	1.41E+00	Ref. 3
108		Ethyl benzene	100-41-4	3.04E-01	lb/MMCF	1.85E+01	5.07E-01	Ref. 3
109		Formaldehyde	50-00-0	1.51E+00	lb/MMCF	9.20E+01	2.52E+00	Ref. 3
110		Hydrogen Sulfide	7783-06-4	4.05E+00	lb/MMCF	2.47E+02	6.76E+00	Ref. 3

111	Phenol	108-95-2	6.96E-02	lb/MMCF	4.24E+00	1.16E-01	Ref. 3
112	Phosphorus and compounds	7723-14-0	7.21E-03	lb/MMCF	4.39E+00	1.20E-02	Ref. 3
113	Propylene	115-07-1	2.05E-02	lb/MMCF	1.25E+00	3.42E-02	Ref. 3
114	Toluene	108-88-3	1.37E+00	lb/MMCF	8.35E+01	2.29E+00	Ref. 3
115	Xylene (mixture), including m-xylene, o-xylene, p-xylene	1330-20-7	3.74E-01	lb/MMCF	2.28E+01	6.24E-01	Ref. 3
116	Set 4	Benzene	71-43-2	8.00E-02	lb/MMCF	6.87E-01	1.88E-03	Ref. 4	Emissions from natural gas combustion in TO.
117		Formaldehyde	50-00-0	1.70E-01	lb/MMCF	1.46E+00	4.00E-03	Ref. 4
118		Acetaldehyde	75-07-0	4.30E-02	lb/MMCF	3.69E-01	1.01E-03	Ref. 4
119		Acrolein	107-02-8	2.70E-02	lb/MMCF	2.32E-01	6.35E-04	Ref. 4
120		Ammonia	7664-41-7	3.20E+00	lb/MMCF	2.75E+01	7.53E-01	Ref. 4
121		Ethyl benzene	100-41-4	9.50E-02	lb/MMCF	8.16E-01	2.24E-03	Ref. 4
122		Hexane	110-54-3	6.30E-02	lb/MMCF	5.41E-01	1.48E-03	Ref. 4
123		Toluene	108-88-3	3.66E-01	lb/MMCF	3.14E+00	8.61E-03	Ref. 4
124		Xylene (mixture), including m-xylene, o-xylene, p-xylene	1330-20-7	2.72E-01	lb/MMCF	2.34E+00	6.40E-03	Ref. 4
125		Zinc and compounds	7440-66-6	2.90E-01	lb/MMCF	2.49E+00	6.82E-03	Ref. 4
126					Totals	1421.4625	3.894
128		Emissions Summary
130		TAC	CAS #	lb/yr	lb/day
131		Antimony and compounds	7440-36-0	3.33E-01	9.12E-04
132		Arsenic and compounds	7440-38-2	2.63E+00	7.20E-03
133		Barium and compounds	7440-39-3	1.14E+00	3.12E-03
134		Beryllium and compounds	7440-41-7	1.31E-02	3.60E-05
135		Cadmium and compounds	7440-43-9	2.63E-02	7.20E-05
136		Chromium VI, chromate, and dichromate particulate	18540-29-9	1.40E+00	3.84E-03
137		Cobalt and compounds	7440-48-4	5.43E-02	1.49E-04
138		Copper and compounds	7440-50-8	7.27E-01	1.99E-03
139		Lead and compounds	7439-92-1	1.84E+00	5.04E-03
140		Manganese and compounds	7439-96-5	2.63E+00	7.20E-03
141		Mercury and compounds	7439-97-6	1.49E-01	4.08E-04
142		Nickel compounds, insoluble	C365	9.64E-01	2.64E-03
143		Phosphorus and compounds	7723-14-0	6.22E+02	1.71E+00
144		Selenium and compounds	7782-49-2	1.23E+00	3.36E-03
145		Silver and compounds	7440-22-4	2.80E-01	7.68E-04
146		Thallium and compounds	7440-28-0	6.57E-01	1.80E-03
147		Zinc and compounds	7440-66-6	1.48E+00	4.04E-02
148		1,2,3,4,6,7,8-Heptachlorodibenzo-p-dioxin (HpCDD)	35822-46-9	1.35E-05	3.70E-08
149		Octachlorodibenzo-p-dioxin (OCDD)	3268-87-9	3.21E-05	8.78E-08
150		2,3,7,8-Tetrachlorodibenzofuran (TcDF)	51207-31-9	6.37E-06	1.75E-08
151		Acenaphthene	83-32-9	1.88E-01	5.16E-04
152		Acenaphthylene	208-96-8	4.65E-01	1.27E-03
153		Anthracene	120-12-7	2.56E-01	7.01E-04
154		Benz[a]anthracene	56-55-3	1.33E-01	3.65E-04
155		Benzo[a]pyrene	50-32-8	2.16E-03	5.91E-06
156		Benzo[b]fluoranthene	205-99-2	6.61E-02	1.81E-04
157		Benzo[e]pyrene	192-97-2	1.62E-02	4.44E-05
158		Benzo[g,h,i]perylene	191-24-2	8.94E-03	2.45E-05
159		Benzo[k]fluoranthene	207-08-9	1.29E-02	3.53E-05
160		Chrysene	218-01-9	1.98E-01	5.42E-04
161		Fluoranthene	206-44-0	5.82E-01	1.59E-03
162		Fluorene	86-73-7	7.88E-01	2.16E-03

163		2-Methyl naphthalene	91-57-6	1.87E+00	5.14E-02
164		Naphthalene	91-20-3	2.45E+01	6.72E-01
165		Phenanthrene	85-01-8	2.28E+00	6.24E-03
166		Pyrene	129-00-0	3.88E-01	1.06E-03
167		PCB-8 [2,4'-dichlorobiphenyl]	34883-43-7	1.05E-03	2.88E-06
168		PCB 18 [2,2',5-trichlorobiphenyl]	37680-65-2	6.96E-04	1.91E-06
169		PCB-28 [2,4,4'-trichlorobiphenyl]	7012-37-5	5.88E-04	1.61E-06
170		PCB-44 [2,2',3,5'-tetrachlorobiphenyl]	41464-39-5	2.36E-04	6.46E-07
171		PCB-52 [2,2',5,5'-tetrachlorobiphenyl]	35693-99-3	2.47E-04	6.77E-07
172		PCB-66 [2,3',4,4'-tetrachlorobiphenyl]	32598-10-0	1.18E-04	3.24E-07
173		PCB 77 [3,3',4,4'-tetrachlorobiphenyl]	32598-13-3	1.45E-05	3.96E-08
174		PCB 81 [3,4,4',5-tetrachlorobiphenyl]	70362-50-4	1.24E-06	3.40E-09
175		PCB-101 [2,2',4,5,5'-pentachlorobiphenyl]	37680-73-2	1.20E-04	3.29E-07
176		PCB 105 [2,3,3',4,4'-pentachlorobiphenyl]	32598-14-4	2.86E-05	7.82E-08
177		PCB 118 [2,3',4,4',5-pentachlorobiphenyl]	31508-00-6	7.25E-05	1.99E-07
178		PCB 123 [2,3',4,4',5'-pentachlorobiphenyl]	65510-44-3	1.85E-06	5.08E-09
179		PCB-128 [2,2',3,3',4,4'-hexachlorobiphenyl]	38380-07-3	5.98E-06	1.64E-08
180		PCB-138 [2,2',3,4,4',5'-hexachlorobiphenyl]	35065-28-2	4.84E-05	1.33E-07
181		PCB-153 [2,2',4,4',5,5'-hexachlorobiphenyl]	35065-27-1	4.36E-05	1.20E-07
182		PCB 156 [2,3,3',4,4',5-hexachlorobiphenyl]	38380-08-4	4.01E-06	1.10E-08
183		PCB 167 [2,3',4,4',5,5'-hexachlorobiphenyl]	52663-72-6	1.35E-06	3.69E-09
184		PCB 169 [3,3',4,4',5,5'-hexachlorobiphenyl]	32774-16-6	3.12E-06	8.54E-09
185		PCB-170 [2,2',3,3',4,4',5-heptachlorobiphenyl]	35065-30-6	4.85E-06	1.33E-08
186		PCB-180 [2,2',3,4,4',5,5'-heptachlorobiphenyl]	35065-29-3	1.83E-05	5.02E-08
187		PCB-187 [2,2',3,4',5,5',6-heptachlorobiphenyl]	52663-68-0	7.68E-06	2.10E-08
188		Polychlorinated biphenyls (PCBs)	1336-36-3	1.08E-02	2.95E-05
189		Acetaldehyde	75-07-0	1.23E+01	3.38E-01
190		Acrolein	107-02-8	4.82E+00	1.32E-02
191		Benzene	71-43-2	5.79E+01	1.59E+00
192		1,3-Butadiene	106-99-0	1.49E+01	4.10E-01
193		Chloroform	67-66-3	6.61E+00	1.81E-01
194		2-Chloronaphthalene	91-58-7	8.97E-02	2.46E-04
195		Formaldehyde	50-00-0	9.50E+01	2.60E+00
196		Propylene	115-07-1	1.29E+01	3.53E-01
197		Toluene	108-88-3	9.14E+01	2.50E+00
198		Xylene (mixture), including m-xylene, o-xylene, p-xylene	1330-20-7	3.77E+01	1.03E+00
199		Hydrochloric acid	7647-01-0	1.43E+02	3.91E+00
200		Ethyl benzene	100-41-4	1.86E+01	5.10E-01
201		Hydrogen Sulfide	7783-06-4	2.47E+02	6.76E+00
202		Phenol	108-95-2	4.24E+00	1.16E-01
203		Ammonia	7664-41-7	2.75E+01	7.53E-01
204		Hexane	110-54-3	5.41E-01	1.48E-03
205		Sulfur Trioxide	7446-11-9	4,713.39	12.91
206			Totals	6134.8519	16.8078

	A	B	C	D
1	Attachment B - Emission Calculations
2	Table B-1a: Emissions from the RTO - Supplemental Sulfur Trioxide Calculation
4	Toxics Emission Unit ID:	TO-01
5	Emission Point:	RTO1
6	Description:	Regenerative Thermal Oxidizer (RTO) controlling Refinery, Oil Polishing System (OPS) and Sulfonation
8	Inputs
10	Sulfur Dioxide Emission Rate	4.87	lb/hr	(Jan. 30-31, 2020 Source Test, OPS bauxite regen process not likely occurring concurrent with testing)
11	Sulfur Emission Rate	2.44	lb/hr
12	Total Sulfur Present if 5% Oxidized to SO3	2.56	lb/hr	(5% assumption from AP-42, Section 1.3.3.2)
13	Sulfur Contribution from Bauxite Regen Process	1.75	lb/hr	(Estimated maximum by process vendor)
14	Total Sulfur Available to Form Sulfur Trioxide	4.31	lb/hr
15	5% Oxidized to SO3	0.22	lb/hr - S
16	5% Oxidized to SO3	0.54	lb/hr - SO3

	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V	W	X	Y
1	Attachment B - Emission Calculations
2	Table B-2a: VOC Emissions from Fugitive Equipment Leaks
3
4	Toxics Emission Unit ID:		FUG-1
5		Emission Point:	Front, Jail, BO, UO, IT, REF, SULF, LPS1, LPS2, LDARREF, LDARLPSSULF
6		Description:	Fugitive Equipment Leaks
7
8
9	Area Specific Component Equipment Leak VOC Emissions
10
11	Area/Emission Points	Service Component	Quantity	Emission Factor* (kg/hr/source)	In Service (hours/yr)	In Service (hours/day)	% Leaking	VOC Emissions (lb/yr)	VOC Emission (lb/day)
12	Front	Flanges	80	0.00025	8760	24	10%	38.59	0.106
13	Front	Valves	15	0.01090	8760	24	10%	315.47	0.866
14	Front	Pumps	2	0.11400	8760	24	10%	439.92	1.207
15	Jail	Flanges	200	0.00025	8760	24	10%	96.47	0.265
16	Jail	Valves	40	0.01090	8760	24	10%	841.25	2.308
17	Jail	Pumps	2	0.11400	8760	24	10%	439.92	1.207
18	BO	Flanges	80	0.00025	8760	24	10%	38.59	0.106
19	BO	Valves	20	0.01090	8760	24	10%	420.63	1.154
20	BO	Pumps	2	0.11400	8760	24	10%	439.92	1.207
21	UO	Flanges	30	0.00025	8760	24	10%	14.47	0.040
22	UO	Valves	15	0.01090	8760	24	10%	315.47	0.866
23	IT	Flanges	80	0.00025	8760	24	10%	38.59	0.106
24	IT	Valves	20	0.01090	8760	24	10%	420.63	1.154
25	IT	Pumps	5	0.11400	8760	24	10%	1099.80	3.018
26	REF	Flanges	100	0.00025	8760	24	10%	48.24	0.132
27	REF	Valves	40	0.01090	8760	24	10%	841.25	2.308
28	REF	Pumps	6	0.11400	8760	24	10%	1319.76	3.621
29	SULF	Flanges	100	0.00025	8760	24	10%	48.24	0.132
30	SULF	Valves	40	0.01090	8760	24	10%	841.25	2.308
31	SULF	Pumps	4	0.11400	8760	24	10%	879.84	2.414
32	LPS1	Flanges	1400	0.00025	4380	24	10%	337.66	1.853
33	LPS1	Valves	1820	0.01090	4380	24	10%	19138.49	105.030
34	LPS2	Flanges	250	0.00025	4380	24	10%	60.30	0.331
35	LPS2	Valves	70	0.01090	4380	24	10%	736.10	4.040
36	LPS2	Pumps	8	0.11400	8760	24	10%	1759.68	4.828
37	LDARREF	Flanges	55	3.10E-07	8760	24	0%	0.33	0.001
38	LDARREF	Valves	9	7.80E-06	8760	24	0%	1.35	0.004
39	LDARREF	Pumps	2	2.40E-05	8760	24	0%	0.93	0.003
40	LDARLPSSULF	Flanges	76	3.10E-07	8760	24	0%	0.45	0.001
41	LDARLPSSULF	Valves	15	7.80E-06	8760	24	0%	2.26	0.006
42	LDARLPSSULF	Pumps	2	2.40E-05	8760	24	0%	0.93	0.003
43							Total	30976.78	140.63
44
45
46
47
48
49
50

51
52
53
54
55
56
57	Table B-2b: Area Specific Component Equipment Leak TAC Emissions
58				Annual TAC Emissions (lb/yr)											Daily TAC Emissions (lb/day)
59				91-57-6	91-20-3	108-95-2	1319-77-3	71-43-2	100-41-4	98-82-8	108-88-3	110-54-3	1330-20-7	7783-06-4	91-57-6	91-20-3	108-95-2	1319-77-3	71-43-2	100-41-4	98-82-8	108-88-3	110-54-3	1330-20-7	7783-06-4
60	Area/Emission Point	VOC Emissions (lb/yr)	VOC Emissions (lb/day)	2-Methyl naphthalene	Naphthalene	Phenol	Cresols (mixture), including m-cresol, o-cresol, p-cresol	Benzene	Ethyl benzene	Isopropylbenzene (Cumene)	Toluene	Hexane	Xylene (mixture), including m-xylene, o-xylene, p-xylene	Hydrogen sulfide	2-Methyl naphthalene	Naphthalene	Phenol	Cresols (mixture), including m-cresol, o-cresol, p-cresol	Benzene	Ethyl benzene	Isopropylbenzene (Cumene)	Toluene	Hexane	Xylene (mixture), including m-xylene, o-xylene, p-xylene	Hydrogen sulfide
61	Front	793.98	2.18	2.27E+00	1.32E+00	0.00E+00	0.00E+00	1.84E-01	4.68E-01	9.69E-02	1.66E+00	2.74E-01	2.76E+00	1.35E-01	6.23E-03	3.62E-03	0.00E+00	0.00E+00	5.05E-04	1.28E-03	2.66E-04	4.55E-03	7.52E-04	7.58E-03	3.70E-04
62	Jail	1377.65	3.78	3.94E+00	2.29E+00	0.00E+00	0.00E+00	3.20E-01	8.11E-01	1.68E-01	2.88E+00	4.75E-01	4.79E+00	2.34E-01	1.08E-02	6.28E-03	0.00E+00	0.00E+00	8.77E-04	2.23E-03	4.61E-04	7.90E-03	1.30E-03	1.32E-02	6.43E-04
63	BO	899.14	2.47	2.57E+00	1.49E+00	0.00E+00	0.00E+00	2.09E-01	5.30E-01	1.10E-01	1.88E+00	3.10E-01	3.13E+00	1.53E-01	7.06E-03	4.10E-03	0.00E+00	0.00E+00	5.72E-04	1.45E-03	3.01E-04	5.16E-03	8.51E-04	8.59E-03	4.19E-04
64	UO	329.94	0.91	9.44E-01	5.48E-01	0.00E+00	0.00E+00	7.65E-02	1.94E-01	4.03E-02	6.90E-01	1.14E-01	1.15E+00	5.61E-02	2.59E-03	1.50E-03	0.00E+00	0.00E+00	2.10E-04	5.33E-04	1.10E-04	1.89E-03	3.12E-04	3.15E-03	1.54E-04
65	IT	1559.02	4.28	4.46E+00	2.59E+00	0.00E+00	0.00E+00	3.62E-01	9.18E-01	1.90E-01	3.26E+00	5.38E-01	5.43E+00	2.65E-01	1.22E-02	7.10E-03	0.00E+00	0.00E+00	9.92E-04	2.52E-03	5.22E-04	8.94E-03	1.48E-03	1.49E-02	7.27E-04
66	REF	2209.25	6.06	6.32E+00	3.67E+00	0.00E+00	0.00E+00	5.13E-01	1.30E+00	2.70E-01	4.62E+00	7.62E-01	7.69E+00	3.76E-01	1.73E-02	1.01E-02	0.00E+00	0.00E+00	1.41E-03	3.57E-03	7.40E-04	1.27E-02	2.09E-03	2.11E-02	1.03E-03
67	SULF	1769.33	4.85	5.06E+00	2.94E+00	0.00E+00	0.00E+00	4.10E-01	1.04E+00	2.16E-01	3.70E+00	6.10E-01	6.16E+00	3.01E-01	1.39E-02	8.06E-03	0.00E+00	0.00E+00	1.13E-03	2.86E-03	5.92E-04	1.01E-02	1.67E-03	1.69E-02	8.25E-04
68	LPS1	19476.15	106.88	5.57E+01	3.23E+01	0.00E+00	0.00E+00	4.52E+00	1.15E+01	2.38E+00	4.07E+01	6.72E+00	6.78E+01	3.31E+00	3.06E-01	1.77E-01	0.00E+00	0.00E+00	2.48E-02	6.30E-02	1.30E-02	2.23E-01	3.69E-02	3.72E-01	1.82E-02
69	LPS2	2556.08	9.20	7.31E+00	4.24E+00	0.00E+00	0.00E+00	5.93E-01	1.51E+00	3.12E-01	5.34E+00	8.82E-01	8.90E+00	4.35E-01	2.63E-02	1.53E-02	0.00E+00	0.00E+00	2.13E-03	5.42E-03	1.12E-03	1.92E-02	3.17E-03	3.20E-02	1.56E-03
70	LDARREF	2.61	0.01	7.46E-03	4.33E-03	0.00E+00	0.00E+00	6.05E-04	1.54E-03	3.18E-04	5.45E-03	9.00E-04	9.08E-03	4.44E-04	2.05E-05	1.19E-05	0.00E+00	0.00E+00	1.66E-06	4.22E-06	8.74E-07	1.50E-05	2.47E-06	2.49E-05	1.22E-06
71	LDARLPSSULF	3.64	0.01	1.04E-02	6.04E-03	0.00E+00	0.00E+00	8.44E-04	2.14E-03	4.44E-04	7.60E-03	1.26E-03	1.27E-02	6.18E-04	2.86E-05	1.66E-05	0.00E+00	0.00E+00	2.32E-06	5.88E-06	1.22E-06	2.09E-05	3.44E-06	3.47E-05	1.70E-06
72		Totals for TEU ID: FUG-1		8.86E+01	5.14E+01	0.00E+00	0.00E+00	7.19E+00	1.82E+01	3.78E+00	6.47E+01	1.07E+01	1.08E+02	5.27E+00	4.02E-01	2.33E-01	0.00E+00	0.00E+00	3.26E-02	8.28E-02	1.72E-02	2.94E-01	4.85E-02	4.89E-01	2.39E-02
73
74				3.58E+02

	A	B	C	D	E	F	G	H	I	J	K	L	M	N
1	Attachment B - Emission Calculations
2	Table B-3: Summary of Compostional Analysis
4		PPM by Weight						Wt. %
5	Analyte	Base Oil	VGO	Wastewater	Used Motor Oil	Flux	Light Ends	Base Oil	VGO	Wastewater	Used Motor Oil	Flux	Composite of Non-distillate	Light Ends / Distillate
6	Diethanolamine	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
7	Triethylamine	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
8	2-Chloronaphthalene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
9	2-Methyl naphthalene	ND	ND	ND	ND	ND	2860	0	0	0	0	0	0	0.2860%
10	Acenaphthene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
11	Acenaphthylene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
12	Anthracene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
13	Benzo(a)anthracene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
14	Benzo(a)pyrene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
15	Benzo(g,h,i)perylene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
16	Benzo(k)fluoranthene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
17	Benzo(b)fluoranthene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
18	Chrysene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
19	Dibenzo (a,h) anthracene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
20	Fluoranthene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
21	Fluorene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
22	Indeno(1,2,3-cd)pyrene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
23	Naphthalene	ND	ND	ND	ND	ND	1660	0	0	0	0	0	0	0.1660%
24	Phenanthrene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
25	Phenol	ND	ND	34.9	ND	ND	ND	0	0	0.0035%	0	0	0.0035%	0
26	Pyrene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
27	Cresols (mixture), including m-cresol, o-cresol, p-cresol	ND	ND	13	ND	ND	ND	0	0	0.0013%	0	0	0.0013%	0
28	o-Cresol	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
29	Cresols, Total	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
30	1,1´-Biphenyl	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
31	3-Methylcholanthrene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
32	7,12-Dimethylbenz(a)anthracene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
33	Benzo(e)pyrene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
34	Perylene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
35	Benzene	ND	ND	ND	38.6	ND	232	0	0	0	0.0039%	0	0.0039%	0.0232%
36	Ethyl benzene	ND	ND	ND	148	ND	589	0	0	0	0.0148%	0	0.0148%	0.0589%
37	Isopropylbenzene (Cumene)	ND	ND	ND	ND	ND	122	0	0	0	0	0	0	0.0122%
38	m,p-Xylene	ND	ND	ND	564	ND	2500	0	0	0	0.0564%	0	0.0564%	0.2500%
39	o-Xylene	ND	ND	ND	251	ND	1360	0	0	0	0.0251%	0	0.0251%	0.1360%
40	Styrene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
41	Toluene	ND	ND	ND	508	ND	2090	0	0	0	0.0508%	0	0.0508%	0.2090%
42	1,3-Butadiene	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
43	Hexane	ND	ND	ND	57	ND	345	0	0	0	0.0057%	0	0.0057%	0.0345%
44	MIBK	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
45	Xylene (mixture), including m-xylene, o-xylene, p-xylene	ND	ND	ND	815	ND	3480	0	0	0	0.0815%	0	0.0815%	0.3480%
46	2,2,4-Trimethylpentane	ND	ND	ND	ND	ND	ND	0	0	0	0	0	0	0
47	Hydrogen sulfide	ND	ND	ND	ND	ND	170	0	0	0	0	0	0	0.0170%
49	Note: The analytical report identified the analyte "m7p-cresol" as being detected in the wastewater sample at 13 mg/l. This analyte was renamed above to "Cresols (mixture), including m-cresol, o-cresol, p-cresol" to align with CAO nomenclature.
50	Analytical report name of isopropylbenzene changed to Isopropylbenzene (Cumene)
52							Tank Vapor Speciation using AP-42 Methodology
53	Worse-case Liquid Composition						Distillate Tanks		All Other Tanks

54	Analyte	CAS #					Annual	Short-term	Annual	Short-term
55	2-Methyl naphthalene	91-57-6	0.286000%				0.00031%	0.00063%	0%	0%
56	Naphthalene	91-20-3	0.166000%				0.00072%	0.0013%	0%	0%
57	Phenol	108-95-2	0.000000%				0%	0%	0.000018%	0.000038%
58	Cresols (mixture), including m-cresol, o-cresol, p-cresol	1319-77-3	0.000000%				0%	0%	0.000004%	0.000009%
59	Benzene	71-43-2	0.023200%				0.043%	0.050%	0.0067%	0.0077%
60	Ethyl benzene	100-41-4	0.058900%				0.010%	0.014%	0.0024%	0.0033%
61	Isopropylbenzene (Cumene)	98-82-8	0.012200%				0.0010%	0.0015%	0%	0%
62	Toluene	108-88-3	0.209000%				0.11%	0.14%	0.026%	0.032%
63	Hexane	110-54-3	0.034500%				0.10%	0.11%	0.016%	0.018%
64	Xylene (mixture), including m-xylene, o-xylene, p-xylene	1330-20-7	0.348000%				0.053%	0.073%	0.012%	0.016%
65	Hydrogen sulfide	7783-06-4	0.017000%				6.62%	4.75%	0%	0%

	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V	W	X	Y	Z	AA	AB	AC	AD	AE	AF	AG	AH	AI	AJ	AK	AL	AM	AN	AO	AP	AQ	AR	AS	AT	AU	AV	AW	AX	AY	AZ	BA	BB	BC	BD	BE	BF	BG	BH
1	Ecolube Recovery
2	Distillate Vapor Speciation Calculation							January				February				March				April				May				June				July				August				September				October				November				December				Annual	Max of 95 F
3		Solution Composition						501.40				503.45				506.65				510.10				516.30				521.15				528.05				527.50				522.95				513.25				505.50				500.85					554.67
4		Component	Weight % in Liquid Phase	MW (lb/lb-mole)	No. Moles	Mole % in Liquid Phase	Liquid Mole Fraction (Xi) (1)	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase	Max of any month	Vapor Partial Pressure (Pi) (kPa) (2)	Vapor Mole Fraction (Yi) (3)	Pounds in Vapor Phase (lb)	Weight % in Vapor Phase
5	00091-57-6	2-Methyl naphthalene	0.2860%	142.20	0.0000201	0.29%	0.00	4.28E-06	0.00	0.000	0.000%	4.80E-06	0.00	0.000	0.000%	5.74E-06	0.00	0.000	0.000%	6.92E-06	0.00	0.000	0.000%	9.63E-06	0.00	0.000	0.000%	1.24E-05	0.00	0.000	0.000%	1.75E-05	2.29E-06	3.26E-04	0.000%	1.70E-05	2.26E-06	3.21E-04	0.000%	1.36E-05	1.97E-06	2.80E-04	0.000%	8.20E-06	1.45E-06	2.06E-04	0.000%	5.38E-06	1.12E-06	1.59E-04	0.000%	4.15E-06	9.54E-07	1.36E-04	0.000%	0.000%	5.97E-05	4.74E-06	6.74E-04	0.001%
6	00091-20-3	Naphthalene	0.1660%	128.17	0.0000130	0.19%	0.00	1.30E-05	0.00	0.000	0.000%	1.44E-05	0.00	0.000	0.000%	1.69E-05	0.00	0.000	0.000%	1.99E-05	0.00	0.000	0.000%	2.66E-05	0.00	0.001	0.001%	3.32E-05	0.00	0.001	0.001%	4.50E-05	5.90E-06	7.57E-04	0.001%	4.40E-05	5.83E-06	7.47E-04	0.001%	3.60E-05	5.22E-06	6.69E-04	0.001%	2.31E-05	4.08E-06	5.23E-04	0.001%	1.60E-05	3.32E-06	4.26E-04	0.000%	1.27E-05	2.92E-06	3.74E-04	0.000%	0.001%	1.34E-04	1.06E-05	1.36E-03	0.001%
7	00108-95-2	Phenol	0%	94.11	0.0000000	0.00%	0.00	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%
8	00095-48-7	Cresols (mixture), including m-cresol, o-cresol, p-cresol	0%	108.14	0.0000000	0.00%	0.00	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00	0.000	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%	0.000%	0.00E+00	0.00E+00	0.00E+00	0.000%
9	00071-43-2	Benzene	0.0232%	78.11	0.0000030	0.04%	0.00	2.06E-03	0.00	0.037	0.036%	2.19E-03	0.00	0.037	0.036%	2.41E-03	0.00	0.038	0.037%	2.67E-03	0.00	0.039	0.038%	3.18E-03	0.00	0.041	0.040%	3.64E-03	0.00	0.043	0.041%	4.39E-03	5.76E-04	4.50E-02	0.043%	4.33E-03	5.74E-04	4.48E-02	0.043%	3.83E-03	5.55E-04	4.34E-02	0.041%	2.92E-03	5.16E-04	4.03E-02	0.039%	2.33E-03	4.85E-04	3.79E-02	0.037%	2.03E-03	4.66E-04	3.64E-02	0.035%	0.043%	8.58E-03	6.81E-04	5.32E-02	0.050%
10	00100-41-4	Ethyl benzene	0.0589%	106.17	0.0000055	0.08%	0.00	2.97E-04	0.00	0.007	0.007%	3.21E-04	0.00	0.007	0.007%	3.62E-04	0.00	0.008	0.008%	4.11E-04	0.00	0.008	0.008%	5.14E-04	0.00	0.009	0.009%	6.09E-04	0.00	0.010	0.009%	7.71E-04	1.01E-04	1.07E-02	0.010%	7.57E-04	1.00E-04	1.06E-02	0.010%	6.48E-04	9.41E-05	9.99E-03	0.010%	4.61E-04	8.15E-05	8.66E-03	0.008%	3.47E-04	7.22E-05	7.67E-03	0.007%	2.91E-04	6.69E-05	7.11E-03	0.007%	0.010%	1.78E-03	1.42E-04	1.50E-02	0.014%
11	00098-82-8	Isopropylbenzene (Cumene)	0.0122%	120.19	0.0000010	0.01%	0.00	2.38E-05	0.00	0.001	0.001%	2.59E-05	0.00	0.001	0.001%	2.95E-05	0.00	0.001	0.001%	3.38E-05	0.00	0.001	0.001%	4.30E-05	0.00	0.001	0.001%	5.16E-05	0.00	0.001	0.001%	6.65E-05	8.72E-06	1.05E-03	0.001%	6.52E-05	8.64E-06	1.04E-03	0.001%	5.52E-05	8.01E-06	9.63E-04	0.001%	3.83E-05	6.76E-06	8.13E-04	0.001%	2.82E-05	5.86E-06	7.04E-04	0.001%	2.33E-05	5.36E-06	6.44E-04	0.001%	0.001%	1.64E-04	1.30E-05	1.56E-03	0.001%
12	00108-88-3	Toluene	0.2090%	92.14	0.0000227	0.33%	0.00	4.18E-03	0.00	0.087	0.085%	4.47E-03	0.00	0.090	0.087%	4.98E-03	0.00	0.093	0.090%	5.57E-03	0.00	0.097	0.093%	6.80E-03	0.00	0.104	0.100%	7.91E-03	0.00	0.110	0.105%	9.75E-03	1.28E-03	1.18E-01	0.112%	9.59E-03	1.27E-03	1.17E-01	0.111%	8.36E-03	1.21E-03	1.12E-01	0.106%	6.17E-03	1.09E-03	1.01E-01	0.097%	4.79E-03	9.97E-04	9.19E-02	0.089%	4.10E-03	9.43E-04	8.69E-02	0.084%	0.112%	2.06E-02	1.64E-03	1.51E-01	0.141%
13	00110-54-3	Hexane	0.0345%	86.18	0.0000040	0.06%	0.00	4.69E-03	0.00	0.092	0.089%	4.97E-03	0.00	0.093	0.090%	5.43E-03	0.00	0.095	0.092%	5.97E-03	0.00	0.097	0.094%	7.05E-03	0.00	0.101	0.097%	8.00E-03	0.00	0.104	0.099%	9.54E-03	1.25E-03	1.08E-01	0.102%	9.41E-03	1.25E-03	1.07E-01	0.102%	8.38E-03	1.22E-03	1.05E-01	0.100%	6.50E-03	1.15E-03	9.90E-02	0.095%	5.26E-03	1.09E-03	9.43E-02	0.091%	4.61E-03	1.06E-03	9.15E-02	0.089%	0.102%	1.79E-02	1.42E-03	1.22E-01	0.114%
14	00108-38-3	Xylene (mixture), including m-xylene, o-xylene, p-xylene	0.3480%	106.17	0.0000328	0.48%	0.00	1.52E-03	0.00	0.037	0.036%	1.65E-03	0.00	0.038	0.037%	1.86E-03	0.00	0.040	0.039%	2.11E-03	0.00	0.042	0.041%	2.64E-03	0.00	0.047	0.045%	3.14E-03	0.00	0.050	0.048%	3.98E-03	5.21E-04	5.53E-02	0.053%	3.90E-03	5.17E-04	5.49E-02	0.052%	3.34E-03	4.85E-04	5.14E-02	0.049%	2.37E-03	4.19E-04	4.45E-02	0.043%	1.78E-03	3.70E-04	3.93E-02	0.038%	1.49E-03	3.43E-04	3.64E-02	0.035%	0.053%	9.27E-03	7.36E-04	7.81E-02	0.073%
15	07783-06-4	Hydrogen sulfide	0.0170%	34.08	0.0000050	0.0728%	0.0007	8.77E-01	0.19927	6.792	6.598%	9.06E-01	0.20	6.712	6.508%	9.52E-01	0.19	6.590	6.371%	1.00E+00	0.19	6.462	6.227%	1.10E+00	0.18	6.242	5.982%	1.19E+00	0.18	6.077	5.800%	1.31E+00	1.72E-01	5.85E+00	5.556%	1.30E+00	1.72E-01	5.87E+00	5.575%	1.22E+00	1.77E-01	6.02E+00	5.735%	1.05E+00	1.86E-01	6.35E+00	6.101%	9.35E-01	1.95E-01	6.63E+00	6.419%	8.69E-01	2.00E-01	6.81E+00	6.623%	6.623%	1.88E+00	1.49E-01	5.09E+00	4.747%
16		Oil (Fuel oil No. 2 basis)	49.4226%	188.00	0.0026289	38.35%	0.38	9.18E-03	0.00	0.392	0.381%	9.87E-03	0.00	0.403	0.391%	1.10E-02	0.00	0.421	0.407%	1.24E-02	0.00	0.441	0.425%	1.53E-02	0.00	0.478	0.459%	1.80E-02	0.00	0.509	0.486%	2.25E-02	2.95E-03	5.55E-01	0.526%	2.21E-02	2.93E-03	5.51E-01	0.523%	1.91E-02	2.77E-03	5.21E-01	0.496%	1.38E-02	2.45E-03	4.60E-01	0.442%	1.06E-02	2.21E-03	4.15E-01	0.401%	9.00E-03	2.07E-03	3.89E-01	0.378%	0.526%	5.06E-02	4.01E-03	7.55E-01	0.703%
17		Oil (JP-4 basis)	49.4226%	120.00	0.0041186	60.09%	0.60	3.50E+00	0.80	95.489	92.768%	3.67E+00	0.80	95.755	92.843%	3.95E+00	0.80	96.160	92.956%	4.26E+00	0.80	96.584	93.072%	4.88E+00	0.81	97.314	93.268%	5.42E+00	0.82	97.858	93.410%	6.27E+00	8.22E-01	9.86E+01	93.596%	6.20E+00	8.21E-01	9.85E+01	93.582%	5.63E+00	8.17E-01	9.81E+01	93.461%	4.57E+00	8.08E-01	9.70E+01	93.174%	3.84E+00	8.00E-01	9.60E+01	92.916%	3.46E+00	7.95E-01	9.54E+01	92.747%	93.596%	1.06E+01	8.42E-01	1.01E+02	94.155%
18				1404.66	0.0068545	100%	1.00	4.40E+00	1.00	102.93	100%	4.60E+00	1.00	103.14	100%	4.92E+00	1.00	103.45	100%	5.30E+00	1.00	103.77	100%	6.02E+00	1.00	104.34	100%	6.65E+00	1.00	104.76	100%	7.63E+00	1.00	105.34	100%	7.55E+00	1.00	105.29	100%	6.89E+00	1.00	104.91	100%	5.66E+00	1.00	104.06	100%	4.80E+00	1.00	103.34	100%	4.35E+00	1.00	102.88	100%	101.1%	1.26E+01	1.00	107.30	100%
19	assume xylene is m-xylene, lowest boiling point							0.638	psi			0.667	psi			0.714	psi			0.768	psi			0.874	psi			0.964	psi			1.106	psi			1.094	psi			1.000	psi			0.820	psi			0.697	psi			0.631	psi				1.826	psi
20	assume cresols are o-cresol, lowest boiling point
21
22																				95 F Max
23			Solution Conditions				R	501.40	503.45	506.65	510.10	516.30	521.15	528.05	527.50	522.95	513.25	505.50	500.85	554.67
24			Solution Temperature				ºC	5.41	6.54	8.32	10.24	13.68	16.38	20.21	19.91	17.38	11.99	7.68	5.10	35.00
25			Atmospheric Pressure				psi	0.638	0.667	0.714	0.768	0.874	0.964	1.106	1.094	1.000	0.820	0.697	0.631	psi
26			Vapor Molecular Weight				Mv	102.93	103.14	103.45	103.77	104.34	104.76	105.34	105.29	104.91	104.06	103.34	102.88	1.00
27		Pure Vapor Pressure Calculation
28		Component	Antoine's Coefficients (1)
29			A	B	C			kPa	kPa	kPa	kPa	kPa	kPa	kPa	kPa	kPa	kPa	kPa	kPa	kPa
30	00091-57-6	2-Methyl naphthalene	4.19	1840.27	-74.76			0.00	0.00	0.00	0.00	0.00	0.00	0.01	0.01	0.00	0.00	0.00	0.00	0.02
31	00091-20-3	Naphthalene	7.15	1831.60	211.82			0.01	0.01	0.01	0.01	0.01	0.02	0.02	0.02	0.02	0.01	0.01	0.01	0.07
32	00108-95-2	Phenol	7.12	1509.70	174.20			0.01	0.01	0.01	0.01	0.02	0.02	0.03	0.03	0.02	0.01	0.01	0.01	0.11
33	00095-48-7	Cresols (mixture), including m-cresol, o-cresol, p-cresol	6.84	1391.30	160.18			0.00	0.00	0.01	0.01	0.01	0.01	0.02	0.02	0.01	0.01	0.00	0.00	0.07
34	00071-43-2	Benzene	6.91	1211.00	220.79			4.75	5.06	5.56	6.15	7.35	8.41	10.14	9.99	8.84	6.74	5.38	4.68	19.79
35	00100-41-4	Ethyl benzene	6.95	1419.30	212.61			0.37	0.40	0.45	0.51	0.64	0.75	0.95	0.93	0.80	0.57	0.43	0.36	2.20
36	00098-82-8	Isopropylbenzene (Cumene)	6.93	1455.80	207.20			0.16	0.17	0.20	0.23	0.29	0.35	0.45	0.44	0.37	0.26	0.19	0.16	1.10
37	00108-88-3	Toluene	7.02	1377.60	222.64			1.26	1.35	1.50	1.68	2.05	2.39	2.95	2.90	2.53	1.86	1.45	1.24	6.24
38	00110-54-3	Hexane	6.88	1171.50	224.37			8.03	8.50	9.30	10.22	12.07	13.70	16.33	16.11	14.35	11.13	9.01	7.90	30.63
39	00108-38-3	Xylene (mixture), including m-xylene, o-xylene, p-xylene	7.01	1462.30	215.11			0.32	0.34	0.39	0.44	0.55	0.66	0.83	0.82	0.70	0.50	0.37	0.31	1.94
40	07783-06-4	Hydrogen sulfide	4.53	958.59	-0.54			1,204.82	1,244.48	1,308.33	1,379.87	1,515.70	1,628.66	1,799.93	1,785.81	1,672.13	1,447.70	1,285.11	1,194.34	2,586.06
41		Oil (Fuel oil No. 2 basis)	12.10	8907.00				0.02393	0.02573	0.02877	0.03240	0.03996	0.04692	0.05866	0.05764	0.04976	0.03607	0.02764	0.02347	0.13180
42		Oil (JP-4 basis)	11.37	5,784.30				5.82675	6.10699	6.56663	7.09377	8.12859	9.02186	10.42995	10.31150	9.37319	7.60504	6.39827	5.75340	17.64399
43

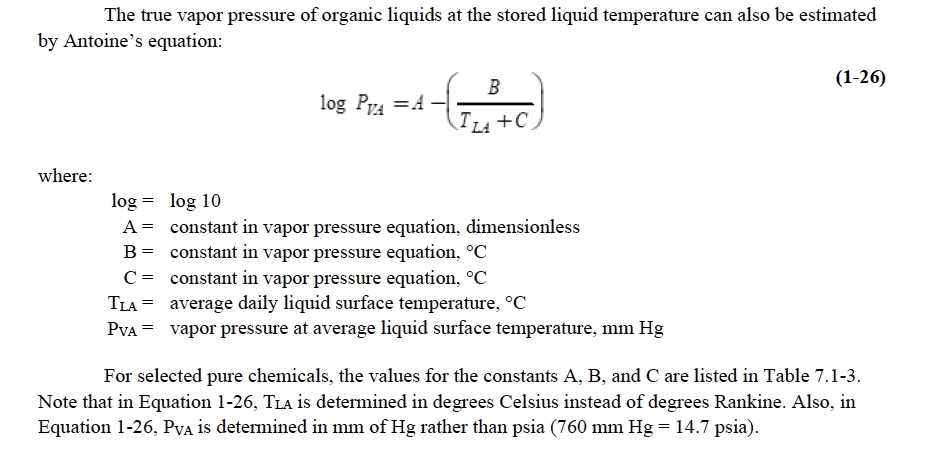

44		(1) Antoine's Coefficients for EG, PH and ET are from AP-42, Section 7.1, Organic Liquid Storage Tanks, June 2020, Table 7.1-3; Antoine's equation is log Piº = A - B/(T+C), where T is in ºC and Piº is in mmHg. Antoine's equation is ln Piº = A + B/(T+C), where T is in K and Piº is in kPa.
45				K, bar
46		(10^(A-(B/(T+C))))*0.13332239		C, mmHg
47		EXP(A+(B/(T+273.15+C)))		K, kPa

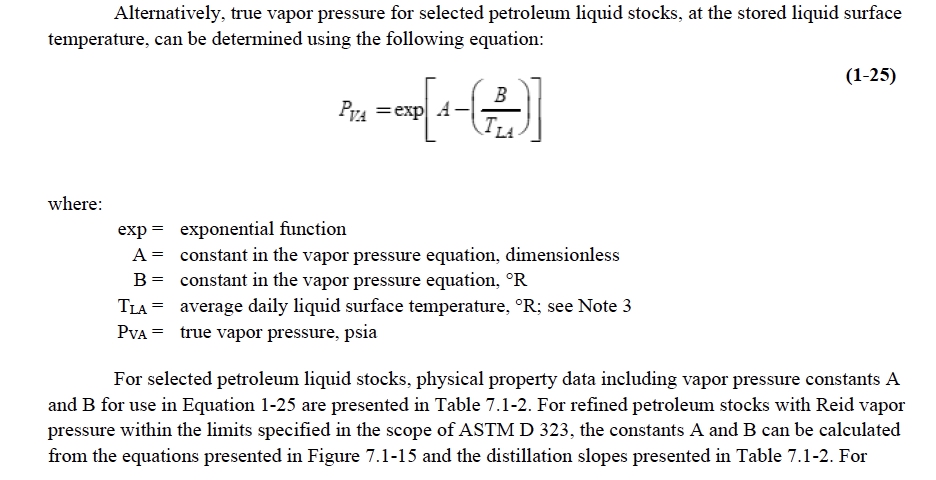

48		(exp(A-(B/(T))))*101.325/14.696		R, psia
49
50

51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
