Water Quality Standards

Review and Recommendations:

Arsenic

Attachment E

April 21, 2011, EQC Meeting

By: Debra Sturdevant

Draft Report

, DEQ Water Quality Standards Program

DRAFT: March 17, 2011. Note to reviewers: this document will continue to be edited during your review over the next week.

This report prepared by:

Oregon Department of Environmental Quality

811 SW 6^th Avenue

Portland, OR 97204

1-800-452-4011

www.oregon.gov/deq

Contact:

Debra Sturdevant

(503) 229-6691

Table of Contents

Executive Summary  1

Recommendations:  1

Background  2

Chapter 1. Introduction and Background  4

Chapter 2. Arsenic Human Health Criteria Review and Recommendations  5

Concerns about Oregon’s Human Health Criteria for Arsenic  5

Arsenic in Oregon  5

Potential Health Impacts of Arsenic  7

Current Human Health Criteria for Arsenic: State and Federal  8

DEQ Proposed Revised Arsenic Criteria  9

Options Considered for Revising the Arsenic Criteria  12

Chapter 3. DEQ’s Proposed Arsenic Reduction Policy  15

Proposed Rule Language:  15

Implementation of the Arsenic Reduction Policy  17

Appendix A. Supplemental Information on Arsenic  23

Executive Summary

The Department of Environmental Quality (DEQ) is proposing to revise Oregon’s human health water quality criteria for arsenic as shown in Table 1 below. This issue paper contains discussion of the proposed criteria, the scientific basis and rationale for the proposed revisions and the process DEQ used to review these criteria.

Notes:

1) Current criteria are from Table 20 (OAR 340-041-0033).

2) All proposed criteria are based on a fish consumption rate of 175 g/d.

Recommendations:

1. Establish separate human health criteria for freshwater and saltwater because marine shellfish (oysters) have much higher bioconcentration rates for arsenic than freshwater finfish.

2. Revise the freshwater criterion for “water + fish ingestion” to 2.1 µg/l as inorganic arsenic.

•  This criterion is calculated using a bioconcentration factor (BCF) of 14 L/kg, which is the geometric mean of the available freshwater fish BCF data.

•  The BCF is based on three studies; 2 for trout and 1 for bluegill. DEQ used all three studies in selecting the BCF because the fish consumption rate also includes a combination of species.

•  These BCF studies were conducted at relatively low water concentrations of arsenic (below 50µg/l). DEQ did not use studies conducted at higher concentrations (i.e. greater than 50 to 1000µg/l), since the results would not reflect arsenic concentrations in Oregon surface waters, which generally range from less than 0.5 to 16 µg/l.

•  This criterion represents a 1 in 10,000 (i.e. 1×10^-4) risk level and is within the risk ranges established by EPA.

3. Revise the freshwater criterion for “fish consumption only” to 2.1 µg/l as inorganic arsenic.

•  DEQ recommends using the same value for “fish consumption only” and “water + fish consumption” as a statewide criterion.

•  Using the same methodology and BCF for the “fish consumption only” criterion would result in a value of 19 µg/l based on a 10^-4 risk level. Because DEQ’s objective is to adopt a value that accounts for natural levels and minimizes human health risk, we do not recommend setting a criterion of 19 µg/l, which is higher than natural levels in Oregon surface waters.

•  DEQ also evaluated a “fish consumption only” criterion of 1.9 µg/l based on a 10^-5 risk level. Using this value would result in a criterion that protects eating fish that is more conservative than the criterion that protects both eating fish and drinking water.

•  A “fish consumption only” criterion of 2.1 µg/l is consistent with the “water + fish ingestion criterion” and would be protective at a risk rate only slightly greater than 10^-5, which is within the acceptable risk range established by EPA.

•  DEQ also recommends establishing site specific criteria for a water body based on the natural conditions when and if information becomes available demonstrating that the arsenic concentration in the water body due to natural sources is greater than 2.1 µg/l.

4. Adopt a “fish consumption only” saltwater criterion of 1µg/l as inorganic arsenic.

•  This criterion represents a 1 in 100,000 (i.e. 1×10^-5) risk level and is within the risk ranges established by EPA.

•  Adopt a separate arsenic saltwater criterion to incorporate the marine shellfish BCF data.

•  Use the geometric mean of the available freshwater and saltwater BCF data to calculate a saltwater criterion. The only saltwater species BCF data available is for shellfish (oysters), which have a much higher bioconcentration rate than finfish. The finfish data available is for freshwater finfish, but it is reasonable to assume marine finfish will be similar to freshwater finfish in their arsenic bioconcentration. In addition, this approach is appropriate because people consume a mix of finfish and shellfish species from marine and estuarine waters.

•  The ‘water + fish ingestion” criterion does not apply to saltwater because saltwater is not used for drinking water (domestic water) supply.

Background

DEQ derived the proposed arsenic criteria using EPA’s calculation method. However, DEQ adapted the calculation for Oregon by using locally appropriate values rather than nation-wide default values for some variables. Specifically, all the proposed criteria are based on a fish consumption rate of 175 grams per day. The risk level used for each proposed criterion varies as follows: the water + fish ingestion criterion is based on a cancer risk level of 10^-4, the freshwater fish consumption only criterion is the same value, which equates to a risk level slightly higher than 10^-5, and the saltwater fish consumption only criterion is based on a risk of 10^-5. Additional modifications for the proposed arsenic criteria include using bioconcentration factors (BCF) of 14 and 26 for the freshwater and saltwater criteria, respectively, and a 10% inorganic arsenic factor. Further explanation of these variables and the criteria calculations is provided in this paper.

DEQ proposes adopting locally derived criteria rather than EPA’s nationally recommended criteria because the natural background levels of arsenic in many Oregon waters are much higher than the national criteria. Naturally-occurring arsenic comes from geologic sources and levels are often higher in ground water than in surface waters. DEQ’s proposed criteria for inorganic arsenic are consistent with EPA recommendations. Inorganic arsenic is the form of arsenic that is toxic to humans, however, it does not bio-accumulate in fish tissue as readily as total arsenic. While DEQ’s proposed water + fish ingestion value is higher than EPA’s recommended criteria under the Clean Water Act (CWA), it is significantly lower than the maximum contaminant level (MCL) established by EPA as protective of finished drinking water under the Safe Drinking Water Act.

DEQ concludes that the proposed criteria represent an appropriate balance of human health protection and recognition that many Oregon waters contain arsenic from natural geologic sources, commonly at levels of 1-3 µg/l, and in some water bodies significantly higher. These natural levels do not represent new or added health risk to the environment. Setting criteria that would trigger widespread identification of Oregon waters as impaired for arsenic, the subsequent development of total maximum daily loads (TMDLs) and other CWA implementation activities would require the use of valuable public resources for administrative activities that would in most cases not result in a real reduction of arsenic levels in the water or in fish.

DEQ also proposes to include an arsenic reduction policy in the state’s water quality regulations. This rule would require permittees that discharge anthropogenic sources of arsenic within a public drinking water supply protection area to take feasible actions to minimize their arsenic discharge. This provision would apply in instances where the ambient arsenic level is below the numeric criteria in order to minimize the amount of arsenic added to surface waters.

Chapter 1. Introduction and Background

The Oregon Department of Environmental Quality (DEQ) reviewed the science behind the human health water quality criteria for some of the naturally occurring earth metals in response to concerns expressed to the Oregon Environmental Quality Commission (EQC) at their October 2008 meeting. Arsenic, iron and manganese are the three metals that DEQ selected to review in more detail. These three earth metals are naturally occurring and are found in Oregon waters at natural background levels greater than the current human health criteria. There are 107 water body segments listed as impaired for these three metals on the 2004/06 303(d) list. In addition, stakeholders point out that the arsenic criteria under the Clean Water Act are much more stringent than the maximum contaminant level for drinking water established under the Safe Drinking Water Act.

At their October 2008 meeting, the EQC directed DEQ to revise Oregon’s human health criteria for toxic pollutants based on the recommended increased fish consumption rate of 175 grams per day. The Department is in the process of conducting that rulemaking. DEQ adopted revisions to the iron and manganese criteria in December 2010 and is now proposing revisions to the arsenic criteria in advance of the full human health criteria rulemaking for several reasons. First, the timeframe for the larger package targets EQC adoption in mid-2011 and the revised criteria associated with that rulemaking will not likely be effective until late 2011 at the earliest, possibly not until mid-2012 or later. Second, the scientific review and early stakeholder review of these revisions are complete and the proposal is ready for public comment. Third, the changes are significant for several NPDES permits that will be renewed over the next year to 18 months. And lastly, 22 stream segments are listed for arsenic. If the proposed revisions are adopted by the EQC in late 2010 or early 2011, they should be effective for use in the 2012 water quality assessment. This will help DEQ to target its resources and those of dischargers to address priority environmental improvements.

Chapter 2. Arsenic Human Health Criteria Review and Recommendations

Concerns about Oregon’s Human Health Criteria for Arsenic

The Oregon Department of Environmental Quality (DEQ) reviewed the science behind the human health water quality criteria for arsenic in response to several concerns, which were expressed to the Oregon Environmental Quality Commission (EQC) at their meeting in October 2008. First, arsenic is a naturally occurring earth metal found in Oregon waters at natural background levels much greater than the current human health criteria. Second, the human health water quality criteria for arsenic that apply in surface waters under the Clean Water Act are much lower than the Maximum Contaminant Level (MCL) developed under the Safe Drinking Water Act for finished drinking water delivered to people’s homes.

DEQ’s current arsenic criteria are shown in Table 3 and described below. Having arsenic criteria that are well below widespread natural background levels of the pollutant presents several problems for the State and for cities and industries that discharge to waters of the state. First, this situation has resulted in 303(d) listings of water bodies as impaired (currently 22 segments) and DEQ expects many more will be identified as more data are collected, even though the arsenic levels are predominantly due to natural geologic sources. DEQ must then address the listings by developing a TMDL or providing an explanation or plan for situations where the source of arsenic is natural and cannot be controlled. This is not a meaningful use of public resources.

Another result of a water body being listed as “impaired” or having a background pollutant concentration above the water quality criterion is that there is no assimilative capacity or mixing available to cities and industries that discharge to the water body. Therefore, the facility must meet the water quality criterion at the “end-of-pipe,” prior to discharging into the river. DEQ expects that under the current arsenic criteria or new criteria based on changing only the fish consumption rate, many municipal wastewater treatment plants and a number of industrial facilities would not be able to meet their resultant permit limits. In some cases, a facility would not be able to discharge the same amount of arsenic they brought into the facility from the river via their intake water. Even if the facility adds no arsenic to its wastewater, if it concentrates the arsenic, which occurs, for example, when the water is used for non-contact cooling, the facility would not be able to achieve the effluent quality necessary to meet the receiving water’s arsenic criteria.

While DEQ’s standards contain a “natural condition” provision, EPA has stated that this type of provision should not apply to human health criteria. The criteria need to protect the uses, which are fishing (i.e. fish consumption) and domestic water supply. For aquatic life, natural conditions are reasoned to support native aquatic species which have acclimated or adapted to the natural conditions. This same reasoning does not necessarily hold true for humans at the risk levels and life span targeted for human health protection. Therefore, if DEQ proposes to set human health criteria based on natural background levels, DEQ must demonstrate that those levels are protective of human health.

Another concern that has been expressed to DEQ is the fact that the current arsenic criteria and proposed criteria based on an increased fish consumption rate are much lower than the maximum contaminant level (MCL). The MCL is the regulatory limit set under the Safe Drinking Water Act to protect public drinking water supplies and applies to finished drinking water delivered to people’s homes.

For these reasons, DEQ pursued development of revised arsenic criteria with the objective of protecting human health along with the ability to use waters with natural levels of arsenic for domestic water supply. DEQ also considered the costs associated with meeting the criteria.

Arsenic in Oregon

Background Levels. Based on the available data, most Oregon waters have natural background levels of arsenic in the range of less than 1 microgram per liter (µg/l) up to 3 µg/l. There are limited data available on arsenic concentrations in surface waters, partly because until recently DEQ used 5.0 µg/l as the laboratory method quantitation limit. Therefore, much of the data collected by DEQ or permittees report “non-detectable” levels of arsenic. In 2008, DEQ reduced the quantitation limit for arsenic to 0.5 µg/l.

DEQ data from approximately 1979-1981 indicate that much higher arsenic levels (greater than 5-10 µg/l) may be present in some south central and southeastern Oregon basins. More recent data also show a range of arsenic levels of less than one to greater than 10 µg/l in upper Klamath basin streams. It is not known whether these levels represent solely natural geologic sources or are elevated due to anthropogenic activity.

Natural Sources. There are natural geologic sources of arsenic in Oregon. The City of Portland has found arsenic levels in the Bull Run reservoir, a primary source of Portland’s drinking water that is upstream of human activity in a protected watershed, ranging from less than 1 µg/l (their minimum reporting level) up to 3 µg/l. Data from the other Oregon streams show arsenic levels in this range as well, including the Crooked River upstream of Prineville, the Little Deschutes River and some streams in the upper Klamath basin. A spring in the upper Klamath basin had an arsenic concentration of 16 µg/l (Newton Consultants Inc., for City of Klamath Falls, 2008). Samples from the upper Santiam basin were mostly below the 0.5 µg/l detection level.

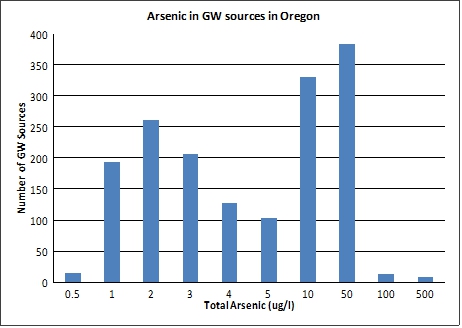

A USGS (1998) report on arsenic concentrations in ground water of the Willamette Basin found concentrations ranging from less than 1 to 2,000 µg/l. The report concludes:

1.  Regional patterns of arsenic occurrence in the Willamette Basin indicate that the sources of arsenic in ground water are not human related. Arsenic-containing metal oxides, volcanic glass in volcanic rocks of rhyolitic to intermediate composition, and clays are likely sources.

2.  High arsenic concentrations (concentrations exceeding the current MCL established by EPA) appear to be associated with particular associations of rock in some areas and with alluvial deposits in others (i.e. the Tualatin basin). (paraphrased)

3.  For alluvial ground water of the Tualatin Basin, (1) presence of competing anions and (2) occurrence of reducing conditions may be important controlling factors in arsenic adsorption/desorption reactions. Dissolution of iron oxides, with subsequent release of adsorbed and (or) co-precipitated arsenic, also may play an important role in arsenic mobility in ground water of the Tualatin Basin.

A 1998 arsenic study by the Washington Department of Ecology (Ecology), that included data collection from the Columbia River, reported:

the recent data suggest that total recoverable arsenic concentrations in local rivers and streams are typically in the range of 0.2 - 1.0 µg/L, while concentrations greater than 2 to 5 µg/L may indicate contamination from anthropogenic sources. Arsenic levels in most 303(d) listed waterbodies are not clearly different from waterbodies that have no apparent sources, and some are comparable to rainwater. (Results and Recommendations from Monitoring Arsenic Levels in 303(d) Listed Rivers in Washington, WDOE, 2002)

Human Sources. A document titled Toxicological Profile for Arsenic (ATSDR, 2007) describes the various means by which humans have affected the fate and transport of arsenic in the environment, including the following:

•  When ores that contain copper or lead are heated in smelters, “most of the arsenic goes up the stack and enters the air as a fine dust. Smelters may collect this dust and take out the arsenic as a compound called arsenic trioxide (As2O3).”

•  Presently, about 90% of all arsenic produced is used as a preservative for wood to make it resistant to rotting and decay. The preservative is copper chromated arsenate (CCA) and the treated wood is referred to as “pressure-treated.” In 2003, U.S. manufacturers of wood preservatives containing arsenic began a voluntary transition from CCA to other wood preservatives that do not contain arsenic in wood products for certain residential uses, such as play structures, picnic tables, decks, fencing, and boardwalks. This phase out was completed on December 31, 2003; however, wood treated prior to this date could still be used and existing structures made with CCA-treated wood would not be affected. CCA-treated wood products continue to be used in industrial applications. It is not known whether, or to what extent, CCA-treated wood products may contribute to exposure of people to arsenic.

•  In the past, inorganic arsenic compounds were predominantly used as pesticides, primarily on cotton fields and in orchards. Inorganic arsenic compounds can no longer be used in agriculture. However, organic arsenic compounds, namely cacodylic acid, disodium methylarsenate (DSMA), and monosodium methylarsenate (MSMA), are still used as pesticides, principally on cotton. Some organic arsenic compounds are used as additives in animal feed.

•  Small quantities of elemental arsenic are added to other metals to form metal mixtures or alloys with improved properties. The greatest use of arsenic in alloys is in lead-acid batteries for automobiles.

•  Another important use of arsenic compounds is in semiconductors and light-emitting diodes. (ATSDR, 2007)

Arsenic Impaired Waters. The streams shown in the table below are currently 303(d) listed for exceeding arsenic criteria. There are 107 water body segments listed for arsenic, which is 43% of the 249 stream segments on the 2004/06 303d list for a toxic pollutant.

Potential Health Impacts of Arsenic

Arsenic is a known carcinogen that may cause cancer in skin or internal organs such as the liver, kidneys, lungs and bladder. Other potential health impacts from arsenic include cardiovascular, kidney, central nervous system and hyper pigmentation or keratosis effects (USEPA, 2000). Factors for how to represent these effects in the criteria equations are included in EPA’s Integrated Risk Information system (IRIS) database. The EPA recommended arsenic criteria are based on a cancer endpoint and are based on inorganic arsenic.

Current Human Health Criteria for Arsenic: State and Federal

The current Oregon and EPA arsenic criteria are shown in the table below.

* Inorganic arsenic

Oregon’s currently effective criteria (OAR 340-041-0033, Table 20) are based on EPA’s 1986 recommended criteria. These criteria were based on a fish consumption rate of 6.5 g/d. Table 20 does not specify whether the human health criteria are for inorganic arsenic or total arsenic. The toxicity data EPA used to calculate the 1986 recommended criteria were for inorganic arsenic.

EPA’s current arsenic criteria for human health and the criteria adopted by the EQC in 2004 are based on a fish consumption rate of 6.5 g/d and a cancer slope factor of 1.75, and are specifically identified as criteria for inorganic arsenic. In 1992, EPA promulgated these arsenic criteria in the National Toxics Rule (USEPA, 1992). Although EPA has since changed the cancer slope factor in IRIS to 1.5 (4/10/1998) and changed their recommended fish consumption rate to 17.5 (EPA, 2000), it has not revised the nationally recommended arsenic criteria accordingly.

EPA did not promulgate human health criteria for arsenic in the California Toxics Rule (CTR) in 2000, stating that “a number of issues and uncertainties existed at the time of the CTR proposal concerning the health effects of arsenic.” Neither did EPA include arsenic criteria in its promulgation of criteria for the Great Lakes States in 1995.

Other states have human health arsenic criteria ranging from a low of the current federal criteria to a high of 50 µg/l. Almost half of the states have criteria of 10 or 50 µg/l based on the current or previous Safe Drinking Water Act maximum contaminant level (MCL). About 10 states have no “water & organism” arsenic criterion and several have no “fish consumption only” criterion. A few states have recalculated their arsenic criteria using EPA equations but altering some of the variables in those equations. The variables states have revised include the bioconcentration factor (BCF), the IRIS cancer slope factor (using the current value of 1.5), the fish consumption rate, and/or the risk level (using 10^-5 rather than 10^-6). In addition, some states have applied an inorganic proportion to the calculation since the criteria apply to inorganic arsenic. One EPA Region (Region 6) developed a methodology for developing alternate arsenic criteria. The factors and methods used in the Region 6 approach are discussed further below.

How the Federal Arsenic Criteria Were Calculated. The following two equations and accompanying table describe the variables that were used to calculate EPA’s current national human health criteria for arsenic.

Water + fish ingestion Criterion (µg/L) = 1000 x RF x BW

        q1*[DW + (BCF x FCR)]

Org Only Criterion (µg/L) = 1000 x RF x BW

      q1*[BCF x FCR]

^a The current cancer potency factor published by EPA in their IRIS data base.

DEQ Proposed Revised Arsenic Criteria

DEQ proposes to revise the arsenic criteria using EPA’s calculation method, but substituting the values EPA uses for some of the equation variables with values that have been updated or are more appropriate for Oregon. The proposed criteria are shown in Table 5. DEQ concludes that the proposed criteria protect human health while recognizing that Oregon has widespread natural background levels of arsenic higher than EPA’s recommended criteria. DEQ’s Toxics Standards Review Rulemaking Workgroup, a group of stakeholders that provided input to DEQ on this rulemaking, supported revising the arsenic criteria based on Oregon appropriate variables and a higher risk level because of the natural background levels of arsenic found in Oregon waters.

The Oregon specific variables, shown in Tables 4 and 5 above and discussed in more detail below, include the fish consumption rate (FCR), the bioconcentration factor (BCF), a percent inorganic arsenic factor (IF) and the risk level. In addition, DEQ uses the current IRIS cancer slope factor of 1.5.

Fish Consumption Rate. DEQ calculated the proposed criteria using 175 g/d as the fish consumption rate (DEQ, 2008a). The current federal criteria are based on a consumption rate of 6.5 g/d. Using this higher rate is responsive to EPA’s disapproval of Oregon’s 2004 human health criteria which was based on their conclusion that criteria based on 17.5 g/d is not sufficient to protect fish consumers in Oregon.

In advance of EPA’s action and based on earlier concerns expressed by EPA on this issue, DEQ looked at multiple studies of fish consumption rates with the assistance of experts in toxicology and public health (the Human Health Focus Group), focusing on those studies conducted in Oregon and Washington as well as the national survey used by EPA. The rate of 175 g/d represents the 90 to 95 percentile of Oregon fish consumers as indicated by these studies (DEQ, 2008b). This value represents the total amount of fish consumed, regardless of species or origin, because it was found that different populations, depending on access and culture, will eat different species of fish. A study conducted by the Columbia River Inter-tribal Fish Commission looked at the amount of fish consumed by members of four Northwest tribes, including the Umatilla and Warm Spring Tribes in Oregon (CRITFC, 1994). According to this study, 95 percent of adult tribal members eat 176 g or less of fish or shellfish per day. As a result, DEQ, with the support of the Confederated Tribes of the Umatilla Indian Reservation and EPA Region 10, selected 175 g/day as an appropriate value to use for the calculation of human health criteria.

Risk Factor. When EPA develops recommended human health criteria for carcinogens, it uses a cancer risk level of 10^-6, which it characterizes as an appropriate level of risk for the general population. However, EPA also states that both 10^-6 and 10^-5 may be acceptable for the general population and that highly exposed populations should not exceed10^-4. To date, DEQ has also used the 10^-6 risk factor for water quality human health criteria and in other environmental protection programs that are based on human health risk, such as the clean-up of contaminated sites. DEQ is not re-evaluating the risk factor as a general matter. However, for arsenic, DEQ is recommending criteria based on alternate risk factors as shown in Table 4 above. The reason for this is primarily because naturally occurring arsenic concentrations in many Oregon waters exceed values based lower risk factors. The risk associated with natural levels of arsenic has been present since people have been drinking water in Oregon. If Oregon adopts arsenic criteria that are exceeded due to natural conditions on a widespread basis around the state, DEQ will be required to use public resources and require private expenditures to implement Clean Water Act programs that will not result in a real environmental benefit. In addition, if communities cannot obtain their water supply from the surface water, one of the common alternatives, groundwater, is likely to have even higher arsenic levels. Groundwater sources are not subject to the Clean Water Act criteria.

DEQ concludes that using the higher risk levels for the arsenic criteria is supported and consistent with EPA guidance (EPA, 2000) because the fish consumption rate and, subsequently the criteria, protect highly exposed populations. It was not established based on the general overall Oregon population, which includes people that do not eat fish, or eat it only occasionally. DEQ used a fish consumption rate of 175 g/d to derive the proposed arsenic criteria, which represents the 95^th percentile of consumers within the state and protects people who eat relatively large amounts of fish.

As with the freshwater criteria, DEQ used a higher risk level (10^-5 rather than 10^-6) to calculate the fish consumption only saltwater criterion for two reasons: 1) because this criterion is also based on a fish consumption rate of 175 g/d, a high exposure rate, and 2) because of the presence of naturally occurring arsenic in marine waters (Tanaka, 1995; National Academy of Sciences, 1972; EPA, 2003). The NAS and EPA documents state that marine waters typically have arsenic levels of 2-3 µg/l of arsenic. Tanaka more recently measured inorganic arsenic and based on his findings, it is reasonable to consider 1µg/l to be the natural background level for marine inorganic arsenic in the Pacific Ocean.

DEQ’s proposed criteria balance the objectives of minimizing human health risk and accounting for natural sources of arsenic. Some waterbodies will have natural background levels above the proposed statewide criteria. In these cases, DEQ may pursue site specific criteria at a later date.

Bioconcentration Factor. Bioconcentration refers to the uptake and retention of a chemical by an aquatic organism from water. A bioconcentration factor (BCF) is the ratio of the concentration of a substance in the tissue of an aquatic organism to its concentration in the ambient water in situations where the organism is exposed through the water only and the ratio does not change substantially over time.

EPA's current BCF of 44 for arsenic is described in Ambient Water Quality Criteria for Arsenic (USEPA, 1980). EPA calculated the BCF using data from two species, the eastern oyster (BCF=350) and bluegill (BCF=4). Because it was based on only two species and one of those is the eastern oyster, which has a much greater BCF (350 v. 4), the BCF of 44 most likely overestimates the health risks associated with freshwater finfish consumption (USEPA Region 6, mid-1990s). In addition, the data sets used to establish the BCFs were relatively small (USEPA, 1980).

A more recent analysis by EPA ( EPA Headquarters, personal communications, November, 2010) incorporated BCF data for rainbow trout from more recent studies with the prior data for bluegill and oysters to provide Oregon several scientifically defensible BCF options, shown in Table 6 below, for use in setting Oregon’s criteria. The BCF options are based on geometric means of the data from the following 4 studies. The first two studies listed were used by EPA to derive the BCF of 44 in the early 1980s. The second two studies are more recent. •  Barrows et al., 1980. Ann Arbor Science Pub., Inc., Ann Arbor MI. pp. 379-392. This study reported a BCF of 4 L/kg using whole-body measurement of total arsenic on immature bluegill.

•   Zaroogian and Hoffman, 1982. Environmental Monitoring and Assessment 1:345-358. This study reported a BCF of 350 L/kg for adult saltwater eastern oysters.

•  McGeachy and Dixon, 1990. Canadian Journal of Fisheries and Aquatic Sciences. 47:2228-2223. This report includes two studies of whole body rainbow trout with geometric mean BCF values of 17 and 20.

•  Rankin and Dixon, 1994. Canadian Journal of Fisheries and Aquatic Sciences. 51: 372-380. This study

The BCF options are based only on studies of species consumed by humans that were conducted with water concentrations below 50µg/l inorganic arsenic. Studies done at higher concentrations (i.e. 100 to 1000 µg/l) were not included. This segregation is appropriate because natural surface waters in Oregon are in the range of less than 0.5 to 16 µg/l. Studies conducted at higher background concentrations would be more appropriate for evaluating contaminated sites. BCFs from studies conducted at higher arsenic water concentrations tend to be lower and visa versa. The reason for this is that fish bio-regulate arsenic and other trace nutrients (DeForest et al, 2007). They are able to take in less and eliminate excess when there is an abundant supply available.

EPA notes that BCFs for muscle tissue, the portion of the fish typically eaten, should be lower than those for the whole body (Stephan, 1993). Azcue and Dixon (1994; IN USEPA, mid 1990s) conducted a study that exemplifies this. The study measured arsenic in rock bass and found the highest concentrations in bone and scales, followed (in decreasing concentration) by intestines and contents, muscle and liver. A BCF of 0.71 was calculated for muscle tissue whereas the BCF based on whole body concentration was 2.3, three times greater than the muscle tissue BCF. Because the data being used by DEQ to derive a BCF value is all based on whole-body testing, DEQ’s value may be conservative because most of the fish consumption captured by Oregon’s rate of 175 g/d is muscle tissue rather than whole body.

A more recent review by EPA (Joe Beaman, EPA Headquarters, personal communications, November, 2010) incorporated BCF data for rainbow trout with the prior data for bluegill and oysters to provide Oregon several scientifically defensible BCF options for use in Oregon’s criteria. This studies include Barrows, et al, 1980; McGeachy and Dixon, 1990; Ranking and Dixon, 1994 and Zaroogian and Hoffman, 1982. The range of BCF options in L/kg include the following based on a geometric mean of the data from these studies:

 For all freshwater fish (finfish):   14

 For coldwater fish (trout):     21

 For saltwater (eastern oyster):  350

 For all fresh and saltwater species:   26

The above BCF options are based only on studies that were conducted with water concentrations below 50µg/l inorganic arsenic and did not include studies done at higher concentrations (i.e. 100 to 1000 µg/l). This segregation is appropriate because natural surface waters in Oregon are in the range of less than 0.5 to 16 µg/l. Data from studies at higher background concentrations would be more appropriate for evaluating contaminated sites. BCFs from studies conducted at higher arsenic water concentrations tend to be lower and visa versa. The reason for this is that fish bio-regulate arsenic and other trace nutrients (DeForest et al, 2007). They are able to take in less and eliminate excess when there is an abundant supply available.

DEQ proposes using a BCF of 14 for arsenic human health criteria that apply to freshwaters of the state. This BCF is the geometric mean of the data from four finfish studies, which tested rainbow trout (three studies in two publications) and bluegill (one study). DEQ’s proposed criteria are calculated using a fish consumption rate of 175 g/d, which represents a mixture of fish species. Most of the fish consumption reflected by this rate, and nearly all of the fish consumption from freshwater, will consist of the muscle tissue of finfish. Therefore, DEQ believes that a BCF of 14 is a reasonable and protective value to use in calculating arsenic criteria for Oregon’s freshwaters.

DEQ proposes using a BCF of 26 for saltwater. This value incorporates the BCF data for the eastern oyster, the only saltwater species data available as well as the BCF data from freshwater finfish. Because people eat a mixture of finfish and shellfish from marine waters, it is appropriate to use a BCF that incorporates the BCF data for both finfish and shellfish. Further, it is reasonable to assume that marine finfish will bioconcentrated arsenic similarly to freshwater finfish. Data indicate that mollusks (oyster and mussel) comprise a small portion of the 175 g/d fish consumption rate, None of the consumption from freshwater is mollusks. The CRITFC study did not include shellfish consumption. Using a geometric mean of 5 values assumes that one-fifth, or 20% of the fish consumption is mollusks. DEQ believes this is a conservative assumption. (See if data on shellfish consumption is available from the national study.)

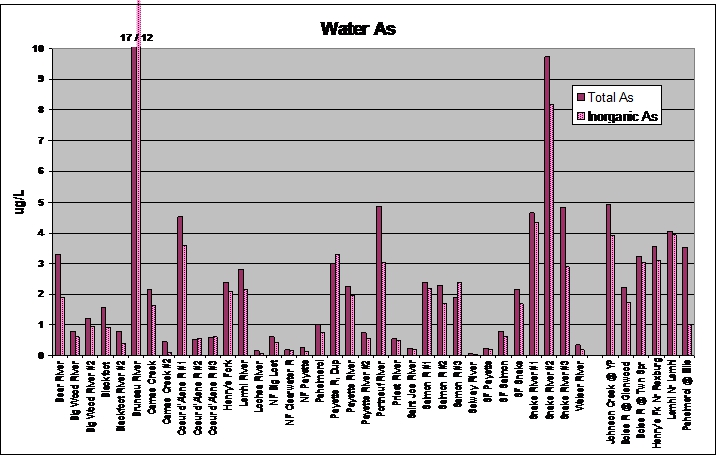

Inorganic Proportion Factor. Arsenic is present in the environment and in fish tissue in organic and inorganic forms. Inorganic arsenic is more toxic to humans and EPA’s toxicity data for cancer and other end points were developed based on inorganic arsenic. EPA’s recommended human health criteria only apply to the inorganic form of arsenic; however, the BCF value (44 L/kg) that EPA used in deriving the human health criteria for arsenic are based on total arsenic, not inorganic arsenic. Therefore, some states have also elected to multiply the BCF value by what might be called a “% inorganic” variable. For example, the EPA Region 6 Interim Strategy and the State of Colorado use a 30% inorganic variable, and the Maryland recalculation used 4% inorganic.

An EPA (2002) study on fish contaminants in the Columbia River found the following related to proportion of inorganic arsenic found in fish tissue: (p. 5-78)

◦  Overall arithmetic average for all composite samples: 6.5%

◦  Average % inorganic by species ranged from 0.5% in carp to 9.2% in sturgeon

◦  Anadromous species: about 1.0% on average

◦  Resident species: about 9% on average

The study said that these findings were consistent with the literature, which shows low percentages of inorganic arsenic levels for most saltwater fish species. A risk assessment performed as part of the EPA (2002) study assumed 10% of total arsenic was inorganic for all species. An EPA scientist’s recent recommendations confirm that inorganic arsenic species (arsenic – 3 and – 5) make up 10% of the total arsenic accumulated and measured in freshwater and saltwater organisms (personal communications, Joe Beaman, EPA, Nov. 2010).

EPA (2003) also concludes that the consensus in the literature is that approximately 10% of the arsenic found in edible portions of marine fish and shellfish is inorganic arsenic and that while there is less known about the forms of arsenic in freshwater fish. They also note that because each arsenic species exhibits different toxicities, it may be important to take into account the fraction of total arsenic present in the inorganic and organic forms when estimating the potential risk posed to human health through the consumption of arsenic-contaminated fish and shellfish.

DEQ proposes to use a 10% inorganic arsenic fraction based on the Columbia River fish contaminant and health risk assessment study (EPA, 2002) and other information noted above. The criteria that result are show in Table 5 (recommended criteria) above and Table 6 (options considered) below. The calculation of the water + fish ingestion criterion is not very sensitive to the % inorganic fraction value. Whether DEQ uses a % inorganic fraction of 1, 10 or 30 does not change the water + fish ingestion criterion value. The % inorganic factor significantly affects the calculated fish consumption only criterion value.

To incorporate the inorganic factor (IF) into the calculation, DEQ used the revised equations:

 Water + fish ingestion Criterion (µg/L) = 1000 x   RF x BW

          q1*[DW + (BCF x FCR x IF)]

 Org Only Criterion (µg/L) = 1000 x RF x BW

        q1*[BCF x FCR x IF]

Toxicity Factors. DEQ did not review the toxicity data or re-evaluate the cancer slope factor used to derive human health criteria for arsenic. DEQ relies on EPA research to provide toxicity information for its human health criteria. DEQ proposes to use the cancer slope factor in EPA’s Integrated Risk Information System (IRIS) data base as of the date of this review, which is 1.5(mg/kg/day)^-1. EPA has not updated its nationally recommended Clean Water Act criteria, which are based on a cancer slope factor of 1.75(mg/kg/day)^-1.

Options Considered for Revising the Arsenic Criteria

DEQ considered three primary alternatives for deriving arsenic criteria as an alternative to EPA’s current recommended criteria:

1.  Re-calculation of the federal criteria using Oregon appropriate variables,

2.  Use of the MCL value for drinking water in some manner, and a

3.  Natural background based approach.

Table 6 shows the possible criteria values under these three approaches.

Notes: 1. MCL = 10 µg/l total arsenic. 2. HHC will be for inorganic arsenic.

3. The current IRIS CSF is 1.5(mg/kg/day)^-1.

Option 1: Re-calculated Criteria using Oregon Appropriate Variables. Option 1 is Oregon’s proposed approach, as discussed in the preceding section and shown in Table 5. DEQ concludes that by using EPA’s calculation formulas with locally appropriate values, this option provides a rationale for deriving criteria that is scientifically defensible and can be clearly explained to the public.

Although it is also based on using the re-calculation option, DEQ is proposing separate fish consumption only criterion for saltwater, as discussed in the preceding section. Bioconcentration is much greater in marine mollusks than freshwater finfish and therefore a different BCF is appropriate. As with the freshwater criteria, DEQ used a higher risk level (10^-5 rather than 10^-6) to calculate the fish consumption only saltwater criterion because 1) the fish consumption rate represents high exposure, and 2) arsenic occurs in marine waters due to natural sources (Tanaka, 1995; National Academy of Sciences, 1972; EPA, 2003).

Option 2: Use a Fraction of the Maximum Contaminant Level from the Safe Drinking Water Act to Derive Oregon’s Arsenic Criteria.

The second approach DEQ considered was to use a combination of the maximum contaminant level (MCL) for drinking water and the EPA criteria calculation method to represent exposure through fish tissue. Nearly half of the states have utilized the MCL value of 10 for their arsenic criterion in place of EPA’s national criteria recommendations. DEQ believes that using a fraction of the MCL (10) as the water quality criteria is preferable over adoption of the MCL due to the additional exposure to arsenic through consumption of fish tissue.

An MCL is the maximum level of a contaminant allowed in drinking water delivered to the tap (post treatment). MCLs are enforceable standards developed by EPA under the Safe Drinking Water Act. MCLs are set as close to maximum contaminant level goals (MCLGs) as feasible using the best available treatment technology and taking cost into consideration. MCLGs are non-enforceable public health goals that describe the level of a contaminant in drinking water below which there is no known or expected risk to health and allow for a margin of safety. For all carcinogens, MCLGs are set to zero. On January 22, 2001, EPA revised its maximum contaminant level (MCL) for arsenic from 50 to 10µg/L, and established a date of January 23, 2006, for all public water supply systems to achieve compliance with the revised MCL.

Option 3: Natural Background plus a Minimal Increment for Assimilative Capacity if that Value Protects Human Health.

Under this approach, DEQ would establish a “default” statewide natural background level using the best currently available information on natural background levels of arsenic in the State. The human health criteria for arsenic would then be set at that level. This would prevent widespread identification of waters as “impaired” due to natural sources. This approach could reasonably lead to a water + fish ingestion criterion of 1or 2µg/l. This criterion would be well below the drinking water MCL of 10 µg/l, and is also below or near the 2.1 µg/l value calculated to protect fish consumption at a consumption rate of 175 g/d and a risk level of 1×10^-4.

A variation on this approach would be to add to the default natural background level, an increment for assimilative capacity, making the criterion slightly higher (for example, 1.5 to 2.5). The purpose of setting the criteria slightly above natural background would be to provide some assimilative capacity for mixing in localized areas. This would allow some discharge of arsenic at concentrations that have been increased due to evaporative cooling, for example, which can occur even if there has been no addition of mass. The discharge would be required to meet the criteria at the edge of an assigned mixing zone.

Additional Considerations:

The following additional considerations could be combined with the three primary options discussed above.

1.  Adopt site-specific criteria by region or basin for the fish consumption only criteria where natural background levels are above the statewide criteria but below the value based on a risk level of 10^-4

2.  Apply the fish consumption only criterion where public domestic water supply is not a designated use and revise beneficial uses in a follow up rulemaking to more narrowly designate water bodies considered suitable for drinking water supply.

Chapter 3. DEQ’s Proposed Arsenic Reduction Policy

DEQ proposes to adopt the following arsenic reduction policy into its water quality standards in addition to the numeric criteria discussed in Chapter 2 above. The goal of this provision is to ensure that Oregon’s proposed numeric water + fish ingestion criterion for arsenic, which is intended to account for natural conditions, does not unintentionally allow preventable human health risk due to anthropogenic loading of arsenic from existing or new sources.

DEQ is proposing revised numeric arsenic criteria of 2.1 µg/l for both the fish + water ingestion and fish consumption only criteria for freshwater and a fish ingestion criterion of 1.0 for saltwater. While these proposed numeric criteria protect human health at an acceptable level given the presence of natural sources of arsenic in the state, it is the state’s policy to maintain the lowest added human health risk from anthropogenic sources of inorganic arsenic practicable, even when ambient inorganic arsenic concentrations are below the numeric criteria. This policy is targeted to dischargers that add inorganic arsenic to Oregon waters and have the potential, due to their location, to impact a public drinking water supply.

The proposed criteria are based on a fish consumption rate of 175 g/day, which is protective of Oregon fish consumers and risk levels that are considered acceptable and protective. However, the criteria and especially the fish + water criterion are based on a higher risk level than Oregon uses for the rest of its human health criteria (10^-6). Due to concerns about drinking water exposure, the approach proposed below is targeted to address sources that impact drinking water supplies.

Proposed Rule Language:

OA 340-401-0033 (4) Arsenic Reduction Policy: The inorganic arsenic criterion for the protection of human health from the combined consumption of organisms and drinking water is 2.3 micrograms per liter. While this criterion is more stringent than the federal maximum contaminant level (MCL) for arsenic in drinking water, which is 10 micrograms per liter, it nonetheless is based on a higher risk level than the Commission has used to establish other human health criteria. This higher risk level recognizes that much of the risk is due to naturally high levels of inorganic arsenic in Oregon’s waterbodies. The inorganic arsenic criterion for the consumption of organisms only is based on the same risk level as Oregon’s other human health toxics criteria. In order to maintain the lowest human health risk from inorganic arsenic in drinking water, the Commission has determined that it is appropriate to adopt the following policy to limit the human contribution to that risk.

(a) It is the policy of the Commission that the addition of inorganic arsenic from new or existing anthropogenic sources to waters of the state within a surface water drinking water protection area be reduced the maximum amount feasible. The requirements of this rule section [OAR 340-041-0033(4)] apply to sources that discharge to surface waters of the state with an ambient inorganic arsenic concentration equal to or lower than the applicable numeric inorganic arsenic criteria for the protection of human health.

(b) The following definitions apply to this section [OAR 340-041-0033(4)]:

(A) “Add inorganic arsenic” means to discharge a net mass of inorganic arsenic from a point source (the mass of inorganic arsenic discharged minus the mass of inorganic arsenic taken into the facility from a surface water source).

(B) A “surface water drinking water protection area,” for the purpose of this section, means an area delineated as such by DEQ under the source water assessment program of the federal Safe Drinking Water Act, 42 U.S.C. § 300j-13. The areas are delineated for the purpose of protecting public or community drinking water supplies that use surface water sources. These delineations can be found at DEQ’s drinking water program website.

(C) “Potential to significantly increase inorganic arsenic concentrations in the public drinking water supply source water” means:

(i) to increase the concentration of inorganic arsenic in the receiving water for a discharge by 10 percent or more after mixing with the harmonic mean flow of the receiving water; or

(ii) as an alternative, if sufficient data are available, either the permittee or DEQ may base the determination of potential significance on a mass balance calculation to determine if the discharge will increase the concentration of inorganic arsenic in the surface water intake water of a public water system by 0.023 micrograms per liter or more.

(c) Following the effective date of this rule, applications for an individual NPDES permit or permit renewal received from industrial dischargers located in a surface water drinking water protection area and identified by DEQ as likely to add inorganic arsenic to the receiving water must include sufficient data to enable DEQ to determine whether:

(A) The discharge in fact adds inorganic arsenic; and

(B) The discharge has the potential to significantly increase inorganic arsenic concentrations in the public drinking water supply source water.

(d) Where DEQ determines that both conditions in subsection (c) of this section are true, the source must develop an inorganic arsenic reduction plan and propose all feasible measures to reduce its inorganic arsenic loading to the receiving water. The proposed plan, including proposed measures, monitoring and reporting requirements, and a schedule for those actions, will be described in the fact sheet and incorporated into the source’s NPDES permit after public comment and DEQ review and approval. In developing the plan, the source must:

(A) Identify how much it can minimize its inorganic arsenic discharge through pollution prevention measures, process changes, wastewater treatment, alternative water supply (for groundwater users) or other possible pollution prevention and/or control measures;

(B) Evaluate the costs, feasibility and environmental impacts of the potential inorganic arsenic reduction and control measures;

(C) Estimate the predicted reduction in inorganic arsenic and the reduced human health risk expected to result from the control measures;

(D) Propose specific inorganic arsenic reduction or control measures, if feasible, and an implementation schedule; and

(E) Propose monitoring and reporting requirements to document progress in plan implementation and the inorganic arsenic load reductions.

(e) In order to implement this section, DEQ will develop the following information and guidance within 120 days of the adoption of this rule and periodically update it as warranted by new information:

(A) A list of industrial sources or source categories, including industrial stormwater and sources covered by general permits, that are likely to add inorganic arsenic to surface waters of the State.

(i) For industrial sources or source categories permitted under a general permit that have been identified by DEQ as likely sources of inorganic arsenic, DEQ will evaluate options for reducing inorganic arsenic during permit renewal or evaluation of Stormwater Pollution Control Plans.

(B) Quantitation limits for monitoring inorganic arsenic concentrations.

(C) Information and guidance to assist sources in estimating, pursuant to paragraph (d) (C) of this section, the reduced human health risk expected to result from inorganic arsenic control measures based on the most current EPA risk assessment.

(f) It is the policy of the Commission that landowners engaged in agricultural or development practices on land where pesticides, fertilizers, or soil amendments containing arsenic are currently being or have previously been applied implement conservation practices to minimize the erosion and runoff of inorganic arsenic to waters of the State or to a location where such material could readily migrate into waters of the State. As a component of DEQ’s response to the Commission’s October 23, 2008 directive on toxic pollutants, DEQ, after providing an opportunity for public comment, is directed to present to the Commission a proposal for implementing this policy in an environmentally meaningful and cost-effective manner. Upon adoption by the Commission, DEQ is expected to implement the proposal as approved or modified by the Commission.

Implementation of the Arsenic Reduction Policy

This section describes how DEQ intends to implement the above proposed rule. Nothing in this arsenic reduction policy replaces or supersedes technology-based permit requirements, permit limits based on numeric arsenic criteria or antidegradation requirements. All of these otherwise applicable criteria and policies continue to apply.

DEQ recognizes that we have not specified an analytical method for inorganic arsenic or the quantitation limit (QL) that will be required for permittee monitoring. Because the proposed numeric criteria for arsenic are for the inorganic form, this information will need to be developed regardless of whether or not this reduction policy is adopted.

Point Sources – Industrial Sources:

1.  Applications for new or renewed individual NPDES permits submitted to DEQ after the effective date of this rule by industrial dischargers that are required to submit arsenic data with their permit application, or are otherwise identified by DEQ as likely to add inorganic arsenic to their wastewater, and that discharge to a water body within a drinking water protection area delineated by DEQ for a surface water intake, shall submit with their permit application sufficient data to allow DEQ to make the determinations described in #3 below. This will include source water and effluent inorganic arsenic concentration and flow data and may also include ambient river data.

a.  A discharger that has sufficient effluent data to demonstrate that its effluent concentration of inorganic arsenic is below DEQ’s quantitation limit or below the ambient river concentration immediately upstream of the discharge may use that information to demonstrate that the discharge does not have the potential to impact the arsenic concentration in a downstream public water supply.

2.  DEQ will use the data to determine:

a.  whether the discharger is adding a quantifiable load of inorganic arsenic to their wastewater (i.e. a quantifiable concentration of inorganic arsenic in the discharge is greater that the inorganic arsenic load taken in from a surface water intake source); and

b.  whether the added load has the potential to increase the concentration of inorganic arsenic in a downstream public drinking water supply. DEQ will determine that a discharge has the potential to increase the concentration of inorganic arsenic in a downstream drinking water supply intake if the source increases the concentration of inorganic arsenic in the river after dilution (near field/point of discharge mixing analysis) by 3% or more, unless the source can demonstrate that their arsenic contribution will not increase the arsenic concentration in the downstream water supply by more than 0.023 µg/l.

3.  If the Department finds that the facility is adding inorganic arsenic and that the added load is impacting a public drinking water supply, the permittee shall develop an arsenic reduction plan, which will be incorporated into its NPDES permit subject to DEQ review and public comment. The source shall include the following in their plan:

a.  Identify how much it can minimize its arsenic discharge through pollution prevention measures, process changes, wastewater treatment, alternative water supply sources or other possible pollution prevention and/or control measures.

b.  Evaluate the costs, technical and economic feasibility and environmental impacts of the identified arsenic reduction and control measures.

Note 1: It is important to evaluate whether a potential arsenic reduction measure, such as a chemical substitution, represents an equal or worse environmental risk or other environmental impact.

Note 2: DEQ recognizes that evaluating water supply options and the environmental impacts of those is complex and there are many issues to consider other than the arsenic loading. If the source of arsenic is groundwater, there may be few if any feasible options for reduction.

c.  Estimate the reduced arsenic load and human health risk expected to result from the control measures.

d.  Propose specific inorganic arsenic reduction or control measures, if feasible, and a schedule for implementing them.

e.  Specify monitoring and reporting requirements related to implementing the plan and the resulting effluent arsenic load reductions.

4.  DEQ will identify factors that the permittee and the agency should consider in weighing the technical and economic feasibility of an inorganic arsenic reduction measure against the reduced human health risk that is expected to result and deciding which measures to implement.

5.  If the timing of a permit renewal is such that the facility has not had sufficient time to collect the required data or develop an arsenic reduction plan prior to permit issuance, the permit will include the data collection and/or planning requirements and a reopener clause, which will allow DEQ to incorporate the proposed plan/measures into the permit prior to the next renewal.

6.  Arsenic reduction plans and their implementation will be reviewed at each permit renewal to evaluate progress in implementation actions and inorganic arsenic reductions and determine whether and new measures are feasible and/or proposed.

7.  There are existing procedures for requesting the re-consideration of a permit that can be used by persons who have grounds to believe that either the data and analysis or the reduction measures included in the permit are inadequate.

Point sources – POTWs

1.  All major POTWs are required to analyze their effluent for arsenic and submit that data to DEQ as part of their permit renewal application.

2.  Arsenic III (the primary inorganic from) is included on Oregon’s Priority Persistent Pollutant list developed under SB737. DEQ will rely on the water quality criteria and the “SB 737” requirements to address potential arsenic contributions from POTWs. Under “SB 737,” the 52 largest POTWs, including all major municipal dischargers, will be required to test for arsenic III in their effluent. If the effluent concentration exceeds the trigger level specified in rule, the facility will be required to develop and implement a pollutant reduction plan for arsenic.

Point Sources – Other

1.  Wood treating facilities – DEQ will incorporate the following into our renewal of industrial stormwater permits for wood treating facilities:

•  Review data on arsenic levels in stormwater runoff

•  Determine the sources of the arsenic on the site

•  Require the facility to identify measures that could be taken to reduce arsenic loading, including chemical substitution, stormwater management and erosion control practices, stormwater treatment, soil testing and remediation, chemical storage and disposal practices, and others.

•  Evaluate the measures, considering: a) potential for reduction of arsenic discharge, b) cost and c) potential environmental impacts (particularly for chemical substitutions), and incorporate appropriate measures into the permit.

2.  Municipal stormwater management – DEQ will incorporate the following into our municipal stormwater permitting program:

•  DEQ will review data on inorganic arsenic levels in stormwater runoff and/or UIC wells to determine whether municipal stormwater is a significant source of inorganic arsenic.

•  If it is determined to be a significant source, DEQ will determine whether it is possible to identify the source(s) of the arsenic and whether additional measures or best management practices could be implemented that would reduce the arsenic loading.

Nonpoint Source Options:

1.  Use the agency-wide Toxics Reduction Strategy to evaluate whether any of the following actions would be: a) likely to reduce inorganic arsenic concentrations in surface water drinking water protection areas, or in waters that exceed the water quality criteria for arsenic, and b) cost effective:

•  a limit on the amount of arsenic in fertilizers, pesticides and/or wood treating chemicals, or a ban on products containing arsenic if there are still such products in use;

•  treated wood and/or chemical collection/take back programs,

•  stormwater management in areas with large amounts of treated wood present, and/or

•  enhanced erosion control practices on lands where soil inorganic arsenic levels are elevated.

2.  Recommend that adequate control of runoff and erosion from urban development and agricultural lands be implemented for multiple benefits. One benefit would be to prevent arsenic and other toxic pollutants that adhere to soil particles from entering waterways. Some contaminants, such as arsenic, are no longer widely used, but may have built up in soils in certain locations from past use. In addition, such controls would also reduce nutrient (i.e. phosphorus) and sediment loading from urban and agricultural lands and therefore provide multiple benefits to fish and aquatic life and the quality of Oregon waters.

3.  Construction stormwater general permit. Erosion and stormwater control practices should be employed to reduce loading of sediment and chemicals attached to sediments to the stream.

4.

References

ATSDR. 2007. Toxicological Profile for Arsenic. U.S. Department of Health and Human Services, Public Health Service Agency for Toxic Substances and Disease Registry, Atlanta, Georgia. Available at: http://www.atsdr.cdc.gov/toxprofiles/tp2.html.

Barrows, et al. 1980. Ann Arbor Science Pub., Inc., Ann Arbor, MI. pp. 379-392.

CRITFC. 1994. A Fish consumption Survey of the Umatilla, Nez Perce, Yakima and Warm Springs Tribes of the Columbia River Basin. Columbia River Intertribal Fish Commission. Portland, Oregon. CRITFC Technical Report No. 94-3. October, 1994.

DeForest, D.K., K.V. Brix and W.J. Adams. 2007. Assessing metal bioaccumulation in aquatic environments: The inverse relationship between bioaccumulation factors, trophic transfer factors and exposure concentration. Aquatic Toxicology 84 (2007) 236-246.

EPA. 1976. Quality Criteria for Water (“Red Book”). U.S. Environmental Protection Agency, Office of Water, Washington, D.C. PB-263 943. Available at: http://www.epa.gov/waterscience/criteria/library/redbook.pdf.

EPA. 1980. Ambient Water Quality Criteria for Arsenic. U.S. Environmental Protection Agency, Office of Water, Washington, D.C. EPA 440/5-80-021. Available at: http://www.epa.gov/waterscience/criteria/library/ambientwqc/arsenic80.pdf.

EPA. 1986. Quality Criteria for Water (“Gold Book”). U.S. Environmental Protection Agency, Office of Water, Washington, D.C. EPA 440/5-86-001. Available at: http://www.epa.gov/waterscience/criteria/library/goldbook.pdf.

EPA. 1992. Water Quality Standards; Establishment of Numeric Criteria for Priority Toxic Pollutants; States' Compliances (“National Toxics Rule”). U.S. Environmental Protection Agency, Office of Water, Washington, D.C. Federal Register, Volume: 57, Issue: 246, Page: 60848 (57 FR 60848), Tuesday, December 22, 1992. Available at: http://www.epa.gov/waterscience/standards/rules/ntr.html.

EPA. 1992b. Secondary Drinking Water Regulations: Guidance for Nuisance Chemicals. U.S. Environmental Protection Agency, Washington, D.C. EPA 810/K-92-001. Available at: http://www.epa.gov/safewater/consumer/2ndstandards.html.

EPA. 1994. Water Quality Standards Handbook, Second Edition. U.S. Environmental Protection Agency, Washington, D.C. EPA 823-B-94-005. Page 3-23. Available at: http://www.epa.gov/waterscience/standards/handbook/.

EPA. 1995. Final Water Quality Guidance for the Great Lakes System; Final Rule. U.S. Environmental Protection Agency, Office of Water, Washington, D.C. Federal Register, Volume: 60, Issue: 56, Page: 15366 (60 FR 15366), Thursday, March 23, 1995. Available at: http://www.regulations.gov/fdmspublic/ContentViewer?objectId=09000064800bf4e4&disposition=attachment&contentType=pdf.

EPA Region 6. Mid 1990s. Region 6 Interim Strategy: Arsenic - Freshwater Human Health Criterion for Fish Consumption. U.S. Environmental Protection Agency, Region 6, Dallas, Texas. Mid-1990s, last updated 2007. Available at: http://www.epa.gov/region6/water/ecopro/watershd/standard/arsenic.htm.

EPA. 2000. “Health Affects of Inorganic Arsenic.” Integrated Risk Information System (IRIS). U.S. Environmental Protection Agency, Washington, D.C. Available at: www.epa.gov/iris.

EPA. 2000. Methodology for Deriving Ambient Water Quality Criteria for the Protection of Human Health. U.S. Environmental Protection Agency, Office of Water, Washington, D.C. EPA-822-B-00-004. Available at: http://www.epa.gov/waterscience/criteria/humanhealth/method/complete.pdf.

EPA. 2000. Water Quality Standards; Establishment of Numeric Criteria for Priority Toxic Pollutants for the State of California; Rule (“California Toxics Rule”). U.S. Environmental Protection Agency, Office of Water, Washington, D.C. Federal Register, Volume: 65, Issue: 97, Page: 31682 (65 FR 31682), Thursday, May 18, 2000. Available at: http://www.epa.gov/waterscience/standards/rules/ctr/index.html.

EPA. 2000. Issues Related to Health Risk of Arsenic. Contained in the administrative record for the California Toxics Rule. (Melinda is tracking this down for us)

EPA. 2002. Columbia River Basin Fish Contaminant Survey, 1996-1998. U.S. Environmental Protection Agency, Region 10, Seattle, Washington. EPA 910-R-02-006. Available at: http://yosemite.epa.gov/r10/oea.nsf/0703BC6B0C5525B088256BDC0076FC44/C3A9164ED269353788256C09005D36B7?OpenDocument.

EPA. 2003. Technical Summary of Information Available on the Bioaccumulation of Arsenic in Aquatic Organisms. EPA-822-R-03-032. USEPA, Washington, DC.

Lunde, G. 1977. Occurrence and Transformation of Arsenic in the Marine Environment. Environmental Health Perspectives, Vol. 19, pp. 47-52. August, 1977.

McGeachy and Dixon, 1990. Canadian Journal of Fisheries and Aquatic Sciences. 47:2228-2233.

National Academy of Sciences. 1972. Water Quality Criteria 1972. For EPA, Washington D.C., 1973.

Newton Consultants Inc., for City of Klamath Falls. 2009. Arsenic data, September 2008-January 2009, Upper Klamath Lake subbasin, Oregon.

ODEQ. 2001. “Appendix G: Toxics Discussion.” Tualatin Subbasin TMDL. Oregon Department of Environmental Quality, Portland, Oregon.

ODEQ. 2008a. DEQ Staff Report to the EQC, October, 2008.

ODEQ. 2008b. Oregon Fish and Shellfish Consumption Rate Project. Human Health Focus Group for the Oregon Department of Environmental Quality, Portland, Oregon. June, 2008.

ODEQ. 2008c. “Chapter 6. Iron, Manganese and Arsenic.” Molalla-Pudding TMDL. Oregon Department of Environmental Quality, Portland, Oregon. Available at: http://www.deq.state.or.us/wq/TMDLs/willamette.htm#mp.

Rankin and Dixon. 1994. Canadian Journal of Fisheries and Aquatic Sciences. 51:372-380.

Salem, City of. 1995-98. Metals data from the North Santiam River subbasin, Oregon. Keith Chapman, Laboratory Program Manager, Willow Lake Treatment Plant. 5915 Windsor Island Rd. N., Salem, OR 97303

Schoof, R.A. and J.W. Yager. 2007. Variation of total and speciated arsenic in commonly consumed fish and seafood. Hum. Ecol. Risk Assess. 13:946-965.

Stephan, Charles E. 1993. Derivation of Proposed Human Health and Wildlife Bioaccumulation Factors for the Great Lakes initiative. U.S. Environmental Protection Agency, Environmental Research Laboratory, Duluth, MN. CAS # 7440-38-2.

Tanaka, Shigeru and Sri Juari Santosa. 1995. The concentration distribution and chemical form of arsenic compounds in sea water. In: Biogeochemical Processes and Ocean Flux in the Western Pacific, Eds. H. Sakai and Y. Nozaki, pp. 159-170. Terra Scientific Publishing Company, Tokyo.

USGS, 1999. “Arsenic in Ground Water of the Willamette Basin, Oregon.” By Stephen R. Hinkle and Daniel J. Polette. USGS Water-Resources Investigations Report 98-4205, 28 pages, 6 figures, 4 tables, 1 appendix, 1 plate. U.S. Geological Survey, Portland, Oregon. Available at: http://or.water.usgs.gov/pubs_dir/Online/Pdf/98-4205.pdf.

Washington Department of Ecology (WDOE), 2002. Results and Recommendations from Monitoring Arsenic Levels in 303(d) Listed Rivers in Washington.

Williams, L., R.A. Schoof, and J.W. Goodrich-Mahoney. 2006. Arsenic bioaccumulation in freshwater fishes. Hum. Ecol. Risk Assess. 12(5):904-923.

Zaroogian and Hoffman. 1982. Enviornmental Monitoring and Assessment 1:345-358.

Bibliography

National Research Council (National Academy of Sciences) report on health effects of arsenic. March, 1999.

NRC. 1999. Arsenic in Drinking Water. Subcommittee on Arsenic in Drinking Water, Committee on Toxicology, Board of Environmental Studies and Toxicology, Commission on Life Science, National Research Council, National Academy Press. Washington, D.C. Available at:

http://books.nap.edu/catalog.php?record_id=6444#toc.

Tetra Tech. 1996. Assessing Human Health Risks from Chemically Contaminated Fish in the Lower Columbia River. Report prepared for the Lower Columbia River Bi-State Program. Redmond, WA. 61 pp. (TC 0 1 10-03). http://www.lcrep.org/pdfs/42.%2001453.pdf.

Appendix A. Supplemental Information on Arsenic

From: Impact of Land Disturbance on the Fate of Arsenical Pesticides, Carl E. Renshawa,*, Benjamin C. Bosticka, Xiahong Fenga, Christine K. Wonga, Elizabeth S. Winstona, Roxanne Karimib, Carol L. Foltb and Celia Y. Chenb.  2005.

Fate and transport in the environment

Inorganic arsenic (As) occurs in two dominant redox states, arsenate (As(V)) and arsenite (As(III)), both highly toxic and carcinogenic (Hopenhayn 2006; Vaughan 2006). The oxidized form, arsenate, behaves chemically similarly to phosphate (P(V)) in the environment, as the two species display similar coordination chemistry and both readily bond with soil solids like iron oxides and clay particles (Stollenwerk 2003). Lab and field studies show that arsenate, like phosphate, sorbs to iron plaques that form on plant roots (Blute, Brabander et al. 2004; Liu, Zhu et al. 2006). Plants generate these plaques by pumping oxygen from the atmosphere to their roots, creating microoxic regimes in otherwise anoxic sediments (Taylor, Crowder et al. 1984).

However, a number of factors interfere with our ability to predict the mobility of As when plants are present. Arsenate, unlike phosphate, easily and commonly shifts redox states in the environment. The reduced form of As, arsenite, tends to be more mobile than arsenate and does not as strongly bond with iron oxides or natural organic matter at low and neutral pH (Stollenwerk 2003; Buschmann, Kappeler et al. 2006). In the root zone, dissolved organic carbon (DOC) exuded by plants will create high oxygen demand that result in anoxic conditions where DOC could then reduce arsenate to arsenite. Additionally, natural organic matter may compete with arsenate for sorption sites on iron oxides (Redman, Macalady et al. 2002). Both As reduction and competitive sorption may lead to greater As mobility. Conversely, both species of inorganic As sorb to natural organic matter, indicating that plants may enhance As retention up to some threshold (Buschmann, Kappeler et al. 2006).

Potential nonpoint sources of arsenic

Our observation of high As and Pb concentrations in the drainages down gradient of the tilled orchard is consistent with a recent regional analysis of stream sediment As and Pb concentrations that found a positive association between stream sediments that contain high As and Pb concentrations and areas inferred to have used arsenical pesticides extensively (Robinson and Ayuso, 2004). Our work extends this regional analysis by demonstrating that: (i) at least below the tilled field the As and Pb were transported to the drainage in two discrete events, with the later mobilization event occurring well after the application of the arsenical pesticides; and (ii) the masses of As and Pb apparently missing from the tilled field and present in the down gradient drainage are consistent with transport due to physical erosion associated with tilling. Most previous work investigating As mobilization due to physical erosion has focused on As contamination due to the erosion of As-rich ores (Black et al., 2004; Oyarzun et al., 2004; Savage et al., 2000). However, tilling-induced mobilization similar to postulated here has recently been documented for other strongly sorbing pesticides (Wu et al., 2004). In contrast, little horizontal redistribution of As has been observed in the untilled As-contaminated soils underlying cattle tick dip sites (Kimber et al., 2002)...

Finally, while this work only considers the effect of tilling on the mobilization of residual arsenical pesticides, our work shows that the Pb and As are bound to small and presumably highly mobile particles. It is therefore likely that other types of land disturbances will also mobilize significant amounts of Pb and As in lands where arsenical pesticides were used, particularly over longer timescales. In southern New Hampshire, for example, former orchard land is currently being rapidly developed and urbanized. Our results suggest that as this land is developed, attention should be given to the possibility of mobilizing previously immobile reservoirs of Pb and As.

Total Arsenic in Drinking Water Supplies in Oregon (ug/l)

* Sources that use only surface water and do not include well water as part of their supply.

Note 1: This data is for finish water, which means these are the levels after the raw water has been treated.

Note 2: This data includes only sources with detectable levels of arsenic (0.5 ug/l or more). There are additional sources where arsenic was not detected. Therefore, the data above do not represent the average of arsenic levels in surface water supplies throughout Oregon, but simply represent commonly occurring levels.

From: Drinking Water data base, Oregon, May 2009 query

From: Drinking Water data base, Oregon, May 2009 query.

Number of GW samples with arsenic values above previous value and up to value shown (i.e. 0.01–0.5; 0.51-1; 1.01-2, etc.).

Figure 1. Data on total and inorganic arsenic from Idaho.

2008/09 total arsenic and inorganic arsenic data from 40 sites on major rivers across Idaho ranged from 25% to 100% inorganic arsenic; the mean was 75% inorganic. Idaho DEQ.
